Technical Specifications
Parameters and characteristics for this part
| Specification | 151-01942 |
|---|---|
| Bundle Center to Mounting Center | 0.98 in |
| Color | Black |
| Features | UV Resistant, Impact Resistant, Heat Stabilized |
| Length | 3.811 in |
| Material | 6, Steel, Polyamide (PA66), Nylon 6 |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Fastener |
| Opening Size (Max) | 0.539 in |
| Opening Size (Min) | 0.244 in |
| Panel Hole Size | 0.51 in |
| Screw Size | M12 |
| Type | P-Type, Clamp |
| Type Attributes | Ribbed, Ratchet |
| Type Attributes Angle | 90 ° |
| Width | 1.374 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 2200 | $ 3.52 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information
151-01 Series

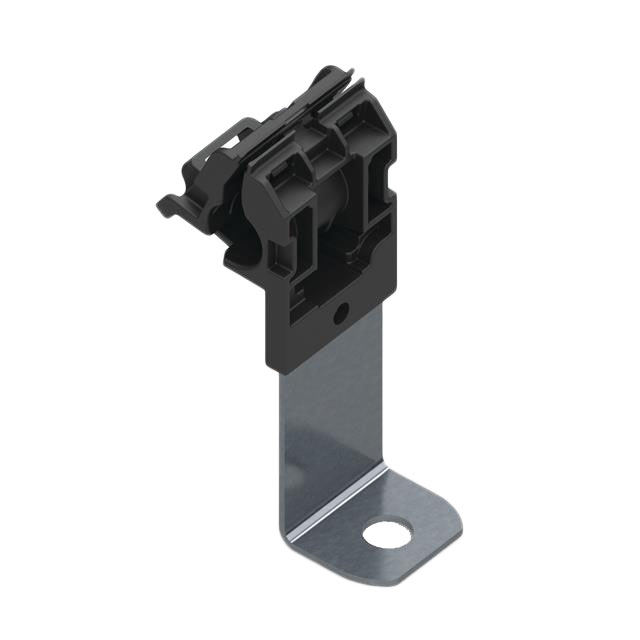

Cable Clamp, P-Type Black Fastener 0.244" ~ 0.539" (6.20mm ~ 13.70mm)
Documents
Technical documentation and resources
