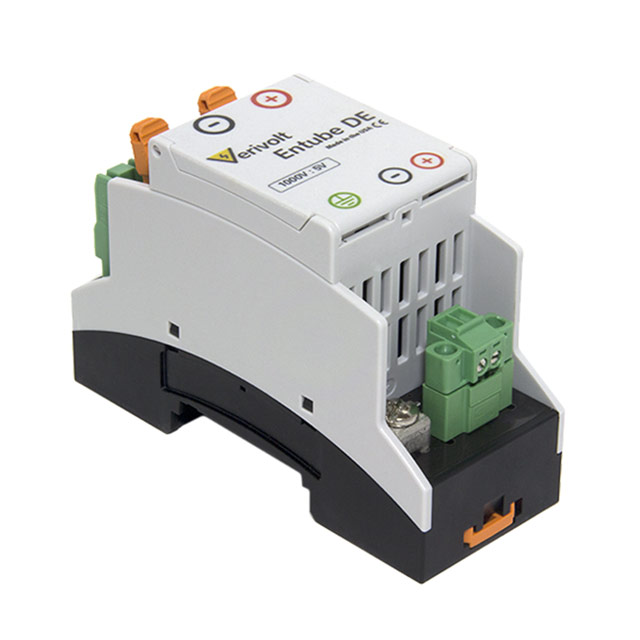

ENTUBE DE (750V 5V)

Active

Verivolt LLC

TRANSDUCER VOLTAGE HIBAND

Search across all available documentation for this part.

Active

Verivolt LLC

TRANSDUCER VOLTAGE HIBAND

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 347.84

General part information

Voltage Transducer ±750V Input ±5V Output DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

TRANSDUCER VOLTAGE 9-28VDC

Part	Response Time	Type	Termination Style	Output	Mounting Type	Input Range [Max]	Input Range [Min]	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Input Range
Verivolt LLC ENTUBE DE-HB (100V 10V DIFFSC)	20 ns	Voltage Transducer	Spring Terminal	10 V	DIN Rail	100 V	-100 V	0.2 %	28 V	9 V	70 °C	-25 °C
Verivolt LLC ENTUBE DE-HB (50V 10V SESC)	20 ns	Voltage Transducer	Spring Terminal	10 V	DIN Rail			0.2 %	28 V	9 V	70 °C	-25 °C	50 V
Verivolt LLC ENTUBE DE-HB (1000V5V SEBNC)	20 ns	Voltage Transducer	BNC, Spring Terminal	5 V	DIN Rail	1000 V	-1000 V	0.2 %	28 V	9 V	70 °C	-25 °C
Verivolt LLC ENTUBE DE-HB (100V 5V DIFFSC)	20 ns	Voltage Transducer	Spring Terminal	5 V	DIN Rail	100 V	-100 V	0.2 %	28 V	9 V	70 °C	-25 °C
Verivolt LLC ENTUBE DE-HB (100V1V SEBNC)	20 ns	Voltage Transducer	BNC, Spring Terminal	1 V	DIN Rail	100 V	-100 V	0.2 %	28 V	9 V	70 °C	-25 °C
Verivolt LLC ENTUBE DE (500V 10V)		Voltage Transducer	Spring Terminal	10 V	DIN Rail	500 V	-500 V	0.2 %			70 °C	-25 °C
Verivolt LLC ENTUBE DE (100V 5V)		Voltage Transducer	Spring Terminal	5 V	DIN Rail	100 V	-100 V	0.2 %			70 °C	-25 °C
Verivolt LLC ENTUBE DE (300V 5V)		Voltage Transducer	Spring Terminal	5 V	DIN Rail			0.2 %			70 °C	-25 °C	300 V
Verivolt LLC ENTUBE DE-HB (750V 10V DIFFSC)	20 ns	Voltage Transducer	Spring Terminal	10 V	DIN Rail			0.2 %	28 V	9 V	70 °C	-25 °C	750 V
Verivolt LLC ENTUBE DE (300V 10V)		Voltage Transducer	Spring Terminal	10 V	DIN Rail			0.2 %			70 °C	-25 °C	300 V
