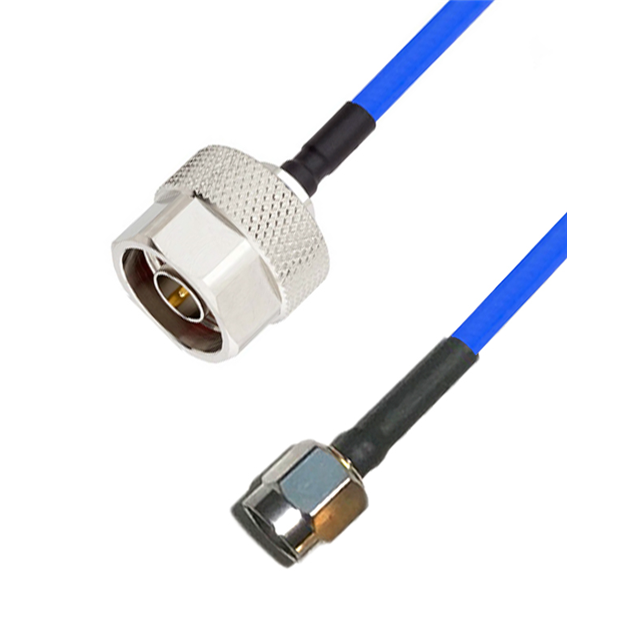

Specification	LSA29-N1S1-S48

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Outer Diameter	3.58 mm
Cable Type	Coaxial Cable, 3.58mm OD Coaxial Cable
Color	Blue
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max	18 GHz
Length	48 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Impedance	50 Ohms
Style	SMA, N-Type

LSA29 Series

Part	1st Connector	Color	Operating Temperature (Max)	Operating Temperature (Min)	2nd Contact Gender	Length	1st Connector Mounting Type	Connector Impedance	Cable Outer Diameter	Cable Type	Style	Overall Impedance	2nd Connector Mounting Type	1st Contact Gender	2nd Connector	Frequency - Max	Features	1st Connector Mounting Feature	Length (ft)
ConductRF LSA29-S1S1-S16	SMA Plug	Blue	125 °C	-55 °C	Male	16 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded
ConductRF LSA29-S1S1-S24	SMA Plug	Blue	125 °C	-55 °C	Male	24 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded
ConductRF LSA29-N1N1-S48	N-Type Plug	Blue	125 °C	-55 °C	Male	48 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	18 GHz	Shielded
ConductRF LSA29-N1N2-S36	N-Type Plug	Blue	125 °C	-55 °C	Male	36 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug Right Angle	18 GHz	Shielded
ConductRF LSA29-S1S1-S48	SMA Plug	Blue	125 °C	-55 °C	Male	48 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded
ConductRF LSA29-N1N3-S48	N-Type Jack	Blue	125 °C	-55 °C	Male	48 in	Panel Mount	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	N-Type	50 Ohms	Free Hanging (In-Line)	Female	N-Type Plug	18 GHz	Shielded	Bulkhead Front Side Nut
ConductRF LSA29-S1S1-S18	SMA Plug	Blue	125 °C	-55 °C	Male	18 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded
ConductRF LSA29-N1N1-S12	N-Type Plug	Blue	125 °C	-55 °C	Male	12 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	18 GHz	Shielded
ConductRF LSA29-N1N1-S36	N-Type Plug	Blue	125 °C	-55 °C	Male	36 in	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	N-Type	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	18 GHz	Shielded
ConductRF LSA29-S1S1-S60	SMA Plug	Blue	125 °C	-55 °C	Male	1524 mm	Free Hanging (In-Line)	50 Ohms	3.58 mm	3.58mm OD Coaxial Cable Coaxial Cable	SMA	50 Ohms	Free Hanging (In-Line)	Male	SMA Plug	18 GHz	Shielded		5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LSA29-N1S1-S48 | Datasheet
