1212
ObsoleteEnergizer Battery Company

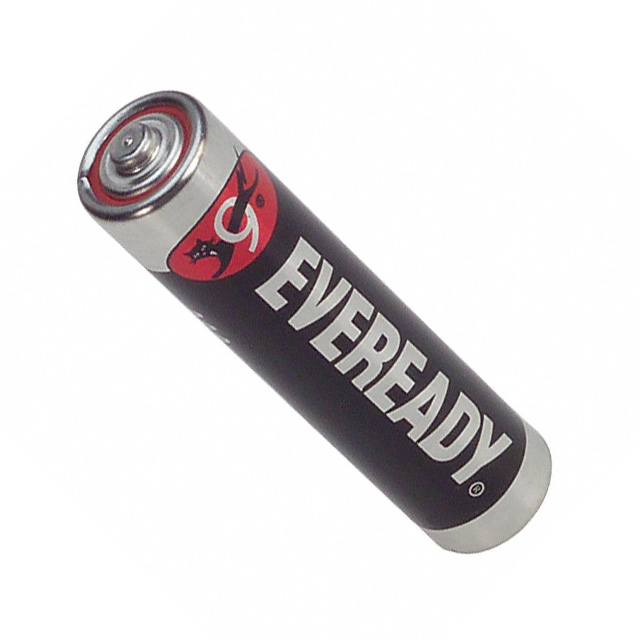

BATTERY ZINC CARBON 1.5V AAA
1212
ObsoleteEnergizer Battery Company
BATTERY ZINC CARBON 1.5V AAA
Description
General part information
1212
AAA Zinc Carbon 1.5 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1212 |
|---|---|
| Battery Cell Size | AAA |
| Battery Chemistry | Zinc Carbon |
| Capacity (Charge) | 540 mAh |
| Discharge Rate (Current) | 25 mA |
| Shelf Life | 36 Months |
| Shelf Life Start | Date of Manufacture |
| Size / Dimension Diameter | 0.41 in |
| Size / Dimension Height | 1.75 in |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.5 VDC |
| Weight | 8.83 g |
