Specification	D38999/20JJ24HA-LC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	12, 16
Contact Type	Crimp
Fastening Type	Threaded
Grade	Military
Housing Color	Olive Drab
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	24 pos
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	A
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium, Cadmium
Shell Material	Aluminum, Composite
Shell Size - Insert Length	25 mm
Shell Size - Insert Width	24 mm
Shell Size (MIL)	J
Shielding	Shielded
Type	For Male Pins

D38999/20JJ Series

...

Part	Shell Material	Shell Finish	Primary Material	Contact Shape	Contact Size	Housing Color	Number of Positions	Fastening Type	Orientation	Type	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Connector Type	Shielding	Mounting Type	Grade	Note	Qualification	Mounting Feature	Shell Size (MIL)	Position Types	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size Options	Termination	Contact Finish - Mating	Color	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Applications	Contact Material	Contact Finish Thickness - Mating	Insert Material
Amphenol Aerospace Operations D38999/20JJ29HA	Aluminum Composite	Cadmium Olive Drab Cadmium	Composite	Circular	16 S	Olive Drab	29	Threaded	A	For Male Pins	Crimp	-65 °C	175 °C	Environment Resistant	29	25	Receptacle Housing	Shielded	Panel Mount	Military	Contacts Not Included	MIL-DTL-38999 Series III	Flange	J
Amphenol Aerospace Operations D38999/20JJ8SA-LC	Aluminum Composite	Cadmium Olive Drab Cadmium	Composite	Circular		Olive Drab	8	Threaded	A	For Female Sockets	Crimp	-65 °C	175 °C	Environment Resistant			Receptacle Housing	Shielded	Panel Mount	Military	Contacts Not Included	MIL-DTL-38999 Series III	Flange	J	Coax Twinax	25	8	8 Twinax

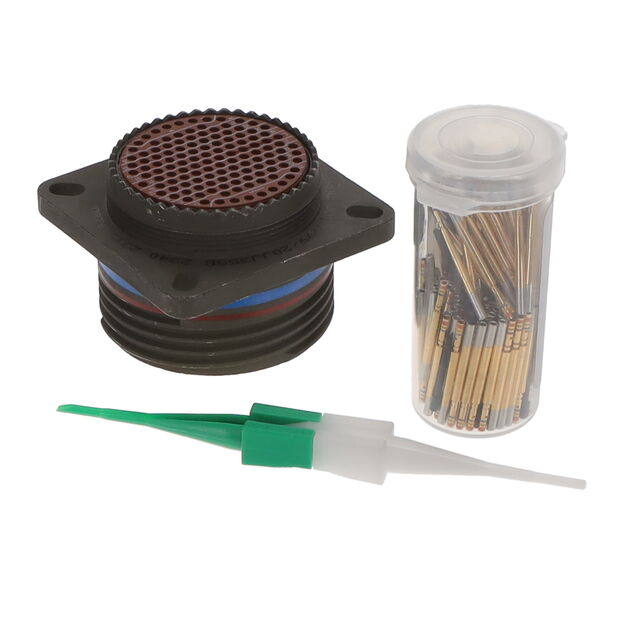

Amphenol Aerospace Operations D38999/20JJ35SB	Composite	Olive Drab Cadmium	Composite				128	Threaded	B			-65 °C	175 °C		35	25	Female Sockets Receptacle	Shielded	Panel Mount	Military		MIL-DTL-38999 Series III	Flange	J					Crimp	Gold	Olive Drab	5 A	Dust Tight Waterproof	IP67	Aviation Marine Military	Copper Alloy	50 µin	Thermoplastic
Amphenol Aerospace Operations D38999/20JJ8SA	Composite	Olive Drab Cadmium	Composite				8	Threaded	A			-65 °C	175 °C	Environment Resistant			Female Sockets Receptacle	Shielded	Panel Mount	Military		MIL-DTL-38999 Series III	Flange	J	Twinax	25	8		Crimp	Gold	Olive Drab				Aerospace Aviation Military	Copper Alloy	50 µin
Amphenol Aerospace Operations D38999/20JJ43SBL
Amphenol Aerospace Operations D38999/20JJ24HC-LC	Composite	Cadmium		Circular	12 16	Olive Drab	24 pos	Threaded	C	For Male Pins	Crimp	-65 °C	175 °C	Environment Resistant			Receptacle Housing	Shielded	Panel Mount	Military	Contacts Not Included	MIL-DTL-38999 Series III	Flange	J		25 mm	24 mm
Amphenol Aerospace Operations D38999/20JJ43AE	Aluminum Composite	Cadmium Olive Drab Cadmium	Composite	Circular	16 20	Olive Drab	43	Threaded	E	For Male Pins	Crimp	-65 °C	175 °C	Environment Resistant	43	25	Plug Housing Receptacle Housing	Shielded Unshielded	Panel Mount	Military	Contacts Not Included	MIL-DTL-38999 Series III	Flange	J														Thermoplastic
Amphenol Aerospace Operations D38999/20JJ37BB	Aluminum Composite	Cadmium Olive Drab Cadmium	Composite	Circular	16 S	Olive Drab	37 pos	Threaded	B	For Female Sockets	Crimp	-65 °C	175 °C	Environment Resistant	37	25	Receptacle Housing	Shielded Unshielded	Panel Mount	Military	Contacts Not Included	MIL-DTL-38999 Series III	Flange	J														Thermoplastic
Amphenol Aerospace Operations D38999/20JJ19HA-LC	Aluminum Composite	Cadmium Olive Drab Cadmium	Composite	Circular	12	Olive Drab	19	Threaded	A	For Male Pins	Crimp	-65 °C	175 °C	Environment Resistant			Receptacle Housing	Shielded	Panel Mount	Military	Contacts Not Included	MIL-DTL-38999 Series III	Flange	J		25 mm	19 mm
Amphenol Aerospace Operations D38999/20JJ19BN	Aluminum Composite	Cadmium Olive Drab Cadmium	Composite	Circular	12	Olive Drab	19	Threaded	N (Normal)	For Female Sockets	Crimp	-65 °C	175 °C	Environment Resistant			Receptacle Housing	Shielded	Panel Mount	Military	Contacts Not Included	MIL-DTL-38999 Series III	Flange	J		25 mm	19 mm
