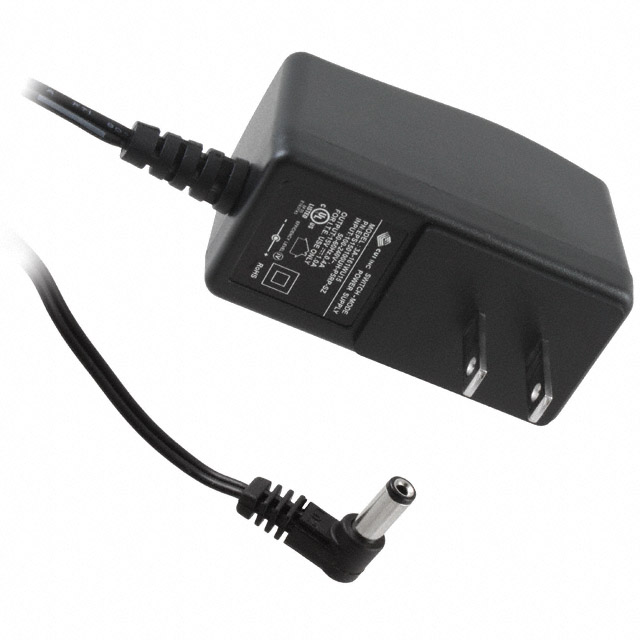

EPS090166UH-P5P-SZ
ObsoleteCUI Inc.
AC/DC WALL MOUNT ADAPTER 9V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPS090166UH-P5P-SZ
ObsoleteCUI Inc.
AC/DC WALL MOUNT ADAPTER 9V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPS090166UH-P5P-SZ |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 1.66 A |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [z] | 12 mm |
| Polarization | Positive Center |
| Power (Watts) | 15 W |
| Region Utilized | North America |
| Size / Dimension [x] | 2.83 " |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [z] | 1.87 " |
| Size / Dimension [z] | 47.6 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
| Weight | 180.08 g |
| Weight | 0.397 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EPS090166UH-P5P-SZ
9V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
