59085-4-T-03-A
ActiveLITTELFUSE

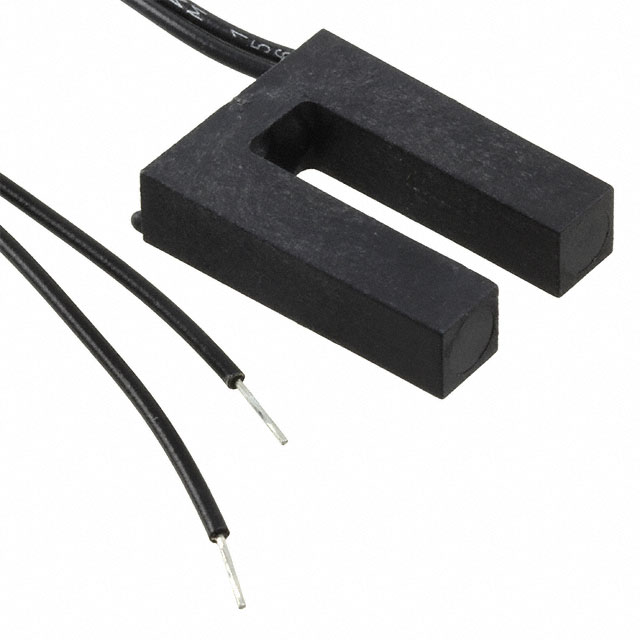

PROXIMITY REED SENSOR, 1.4 MM, CABLE MOUNT, -40°C TO 105°C, 59085 SERIES
59085-4-T-03-A
ActiveLITTELFUSE
PROXIMITY REED SENSOR, 1.4 MM, CABLE MOUNT, -40°C TO 105°C, 59085 SERIES
Description
General part information
59085-4-T-03-A
Magnetic Reed Switch Ferrous Vane SPST-NC Wire Leads Module, Wire Leads, Slot Type
Technical Specifications
Parameters and characteristics for this part
| Specification | 59085-4-T-03-A |
|---|---|
| Actuator Material | Ferrous Vane |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | SPST-NC |
| Package / Case | Module, Wire Leads, Slot Type |
| Termination Style | Wire Leads |
| Type | Reed Switch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
