Description
General part information

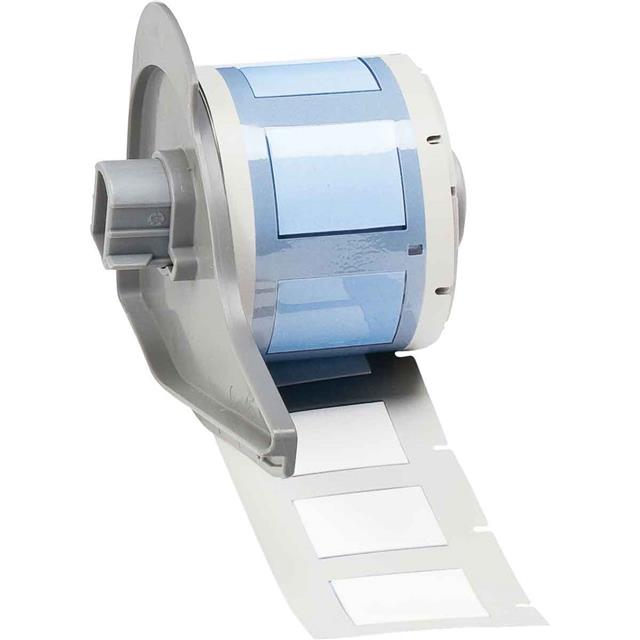

M7-500-1-342
White Heat Shrinkable Label 1.00" W x 0.85" H (25.4mm x 21.6mm); Cable O.D. 0.19" ~ 0.45" (4.8mm ~ 11.4mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | M7-500-1-342 |
|---|---|
| Cable O.D. (Max) | 0.45 " |
| Cable O.D. (Min) | 0.19 " |
| Color | White |
| Label Height | 0.85 " |
| Label Type | Heat Shrinkable |
| Label Width | 1 " |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
