Description
General part information

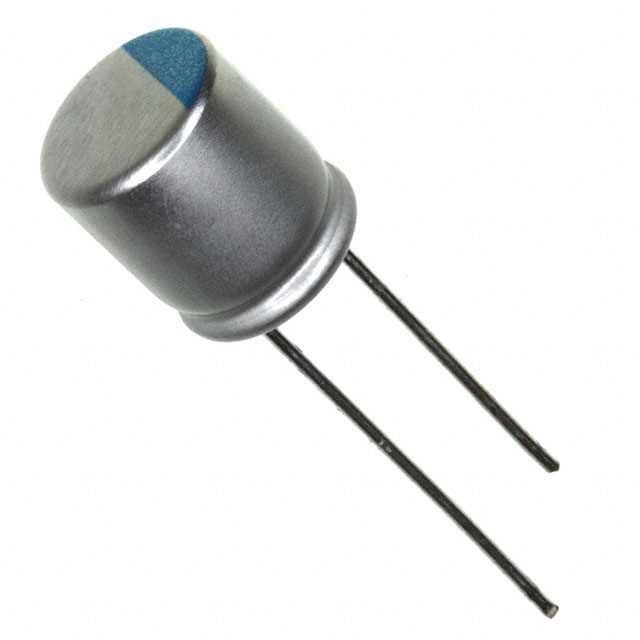

APSG160ELL271MH06S
270 µF 16 V Aluminum - Polymer Capacitors Radial, Can 22mOhm 20000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | APSG160ELL271MH06S |
|---|---|
| Applications | General Purpose |
| Capacitance | 270 µF |
| ESR (Equivalent Series Resistance) | 22 mOhm |
| Height - Seated (Max) | 0.236 in |
| Lead Spacing | 0.138 in |
| Lifetime | 20000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 3.3 A |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 16 V |
