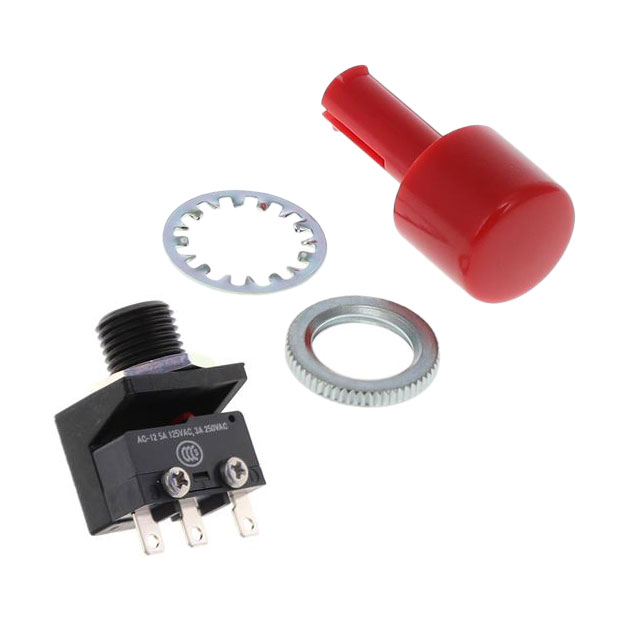

A2A-4R
ActiveOmron Automation and Safety
SWITCH PUSHBUTTON SPDT 5A 125V
A2A-4R
ActiveOmron Automation and Safety
SWITCH PUSHBUTTON SPDT 5A 125V
Description
General part information
A2A-4R
Pushbutton Switch SPDT Standard Panel Mount, Rear
Technical Specifications
Parameters and characteristics for this part
| Specification | A2A-4R |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 200000 |
| Ingress Protection | IP00 |
| Mechanical Life (Cycles) | 200000 Cycles |
| Mounting Type | Rear, Panel Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 10.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
