1840337-1

Active

Bel Power Solutions

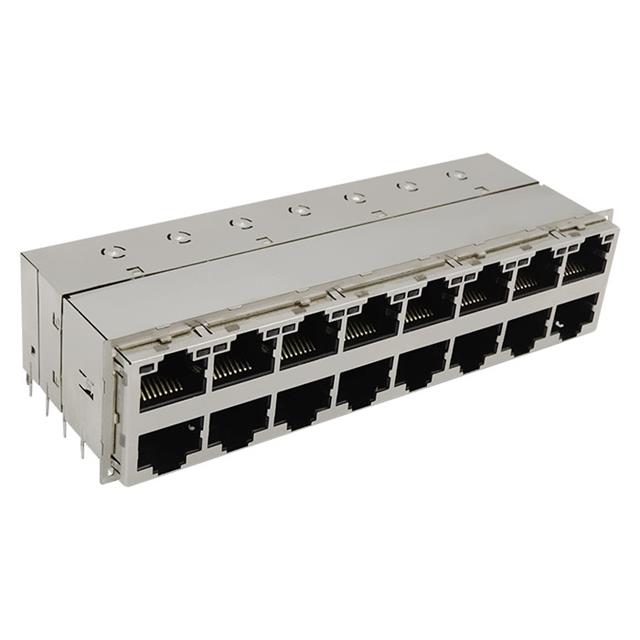

CONN JACK 16PORT PCB

Search across all available documentation for this part.

Active

Bel Power Solutions

CONN JACK 16PORT PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 16PORT PCB

Part	Number of Rows	Connector Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Applications	Number of Cores per Jack	Tab Direction	LED Color	Mounting Type	Features	Height Above Board	Height Above Board	Housing Material	Contact Finish	Contact Material	Shield Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Ports [custom]
Bel Power Solutions 1840337-1	2	RJ45	90 °	50 µin	1.27 µm	10/100/1000 Base-T, AutoMDIX	8	Up and Down	Does Not Contain LED	Through Hole	Board Guide	25.5 mm	1.004 in	Thermoplastic	Gold	Phosphor Bronze	Brass	Shielded, EMI Finger	70 °C	0 °C	Solder	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 59.69

General part information

16 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX
