2313K3432M0712(R)
ActiveGlobTek, Inc.
CORD 18AWG KSC RA-IEC320 6.56'
2313K3432M0712(R)
ActiveGlobTek, Inc.
CORD 18AWG KSC RA-IEC320 6.56'
Description
General part information
2313K3432M0712(R)

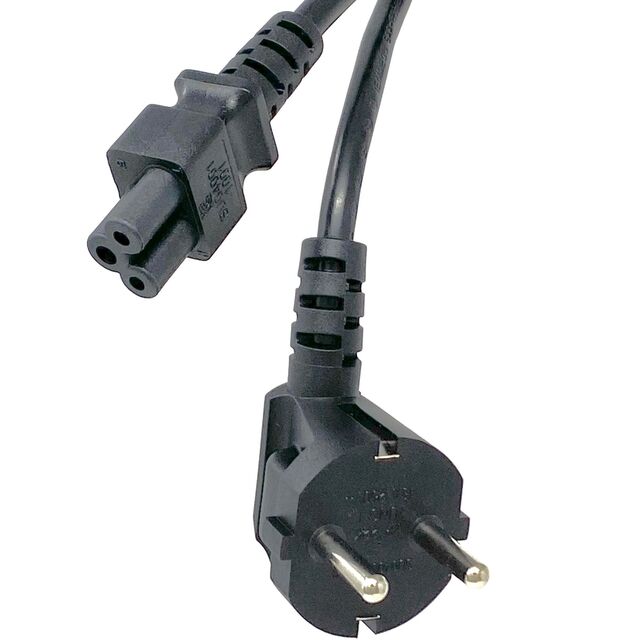

6.56' (2.00m) Power Cord Black KSC 8305, Right Angle To IEC 320-C5 H05VV-F
Technical Specifications
Parameters and characteristics for this part
| Specification | 2313K3432M0712(R) |
|---|---|
| 1st Connector | KSC 8305, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | KSC 8305 |
| 1st Connector Model | KSC 8305 |
| 1st Connector Style | Right Angle |
| 2nd Connector | IEC 320-C5 |
| Approval Agency Marking | KCC |
| Approved Countries | Korea |
| Color | Black |
| Cord Type | H05VV-F |
| Current Rating | 2.5 A |
| Length | 6.56 ft |
| Number of Conductors | 3 |
| Operating Temperature | 70 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 250 V |
| Wire Gauge | 18 AWG |
