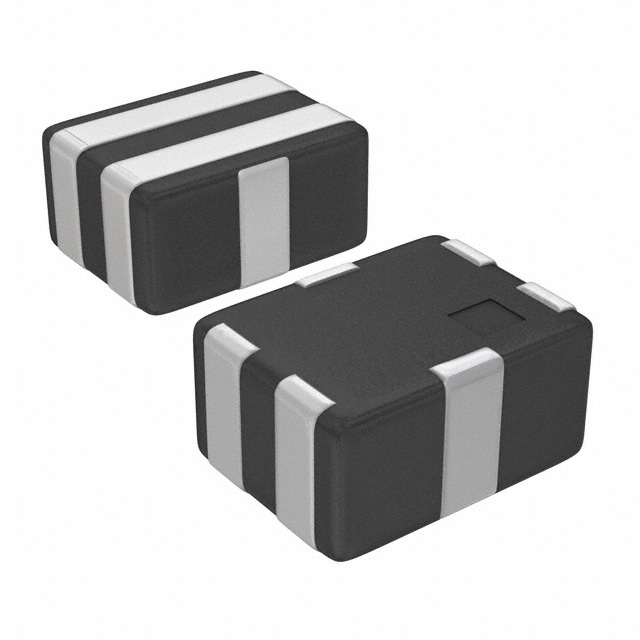

DEA212450BT-7043C1
ActiveTDK Corporation
RF FILTER BAND PASS 2.45GHZ 0805
DEA212450BT-7043C1
ActiveTDK Corporation
RF FILTER BAND PASS 2.45GHZ 0805
Description
General part information
DEA212450BT-7043C1
2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 3dB 0805 (2012 Metric), 6 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | DEA212450BT-7043C1 |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.45 GHz |
| Height (Max) | 0.039 in |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 6 PC Pad |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.059 in |
