CTDR3F-152K
ActiveCentral Technologies
1500UH RADIAL DRUM CORE INDUCTOR
CTDR3F-152K
ActiveCentral Technologies
1500UH RADIAL DRUM CORE INDUCTOR
Description
General part information
CTDR3F-152K

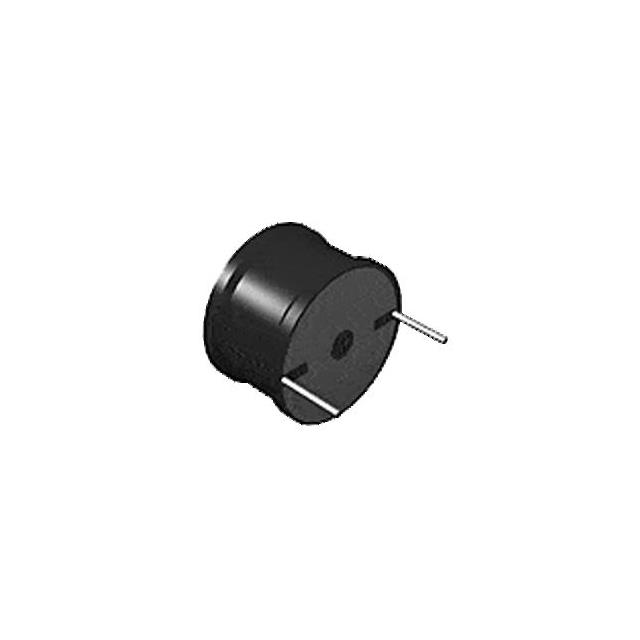

1.5 mH Unshielded Drum Core, Wirewound Inductor 518mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | CTDR3F-152K |
|---|---|
| Current - Saturation (Isat) | 2 A |
| DC Resistance (DCR) (Max) | 518 mOhm |
| Height - Seated (Max) | 0.866 in |
| Inductance | 1.5 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Vertical Cylinder, Radial |
| Package Name | Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.102 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
