9418 0601000

Active

Belden Inc.

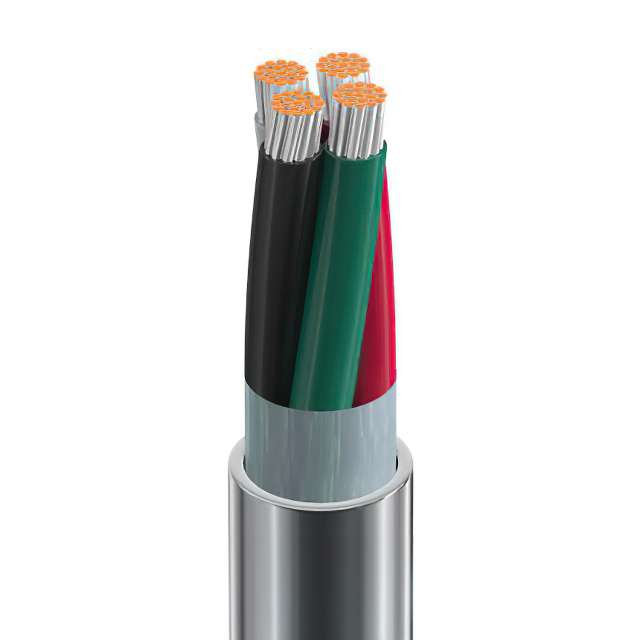

CABLE 4COND 18AWG CHROME SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG CHROME SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9418 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Coverage	Number of Conductors	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Length [x]	Length [x]	Cable Type	Wire Gauge	Jacket (Insulation) Material	Voltage	Length	Ratings	Length
Belden Inc. 9418 060100	Drain Wire	0.889 mm	0.035 in	Foil	Audio Control Instrumentation	19	30 AWG	6.22 mm	0.245 in	Poly-Vinyl Chloride (PVC)	100 %	4	Aluminum	-20 C	80 C	Chrome	Copper Tinned	30.5 m	100 ft	Multi-Conductor	18 AWG	Poly-Vinyl Chloride (PVC)
Belden Inc. 9418 06010000	Drain Wire	0.889 mm	0.035 in	Foil	Audio Control Instrumentation	19	30 AWG	6.22 mm	0.245 in	Poly-Vinyl Chloride (PVC)	100 %	4	Aluminum	-20 C	80 C	Chrome	Copper Tinned		10000 ft	Multi-Conductor	18 AWG	Poly-Vinyl Chloride (PVC)	300 V	3048 m	UL Style 2464
Belden Inc. 9418 0601000	Drain Wire	0.889 mm	0.035 in	Foil	Audio Control Instrumentation	19	30 AWG	6.22 mm	0.245 in	Poly-Vinyl Chloride (PVC)	100 %	4	Aluminum	-20 C	80 C	Chrome	Copper Tinned			Multi-Conductor	18 AWG	Poly-Vinyl Chloride (PVC)	300 V	304.8 m	UL Style 2464	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Chrome 18 AWG Foil 1000.0' (304.8m)
