DS1083LR+T
ActiveAnalog Devices Inc./Maxim Integrated

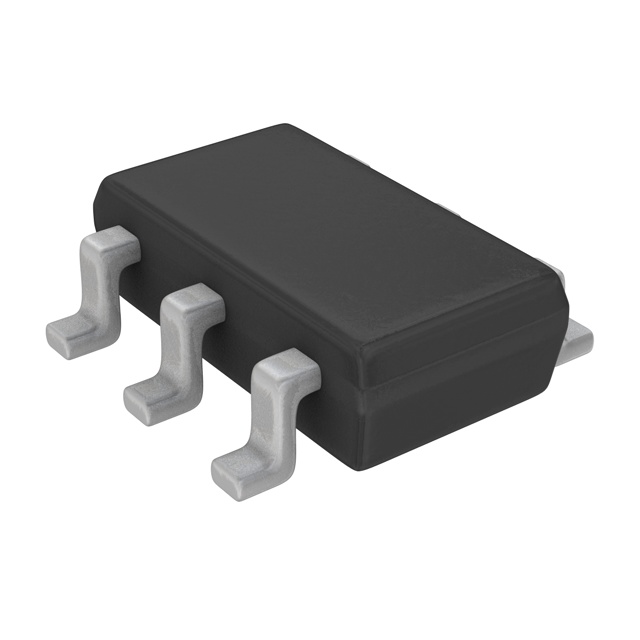

IC CLOCK MOD SS 3.3V TSOT23-6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS1083LR+T
ActiveAnalog Devices Inc./Maxim Integrated
IC CLOCK MOD SS 3.3V TSOT23-6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS1083LR+T | DS1083L Series |
|---|---|---|
| Differential - Input:Output | False | False |
| Frequency - Max [Max] | 134 MHz | 134 MHz |
| Input | Clock | Clock |
| Main Purpose | LCD Panels | LCD Panels |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | LVCMOS | LVCMOS |
| Package / Case | TSOT-23-6, SOT-23-6 Thin | TSOT-23-6, SOT-23-6 Thin |
| PLL | True | True |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Supplier Device Package | TSOT-23-6 | TSOT-23-6 |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DS1083L Series
IC CLOCK MOD SS 3.3V TSOT23-6
| Part | Supplier Device Package | Output | Frequency - Max [Max] | Input | Package / Case | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Differential - Input:Output | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Main Purpose | PLL | Ratio - Input:Output [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS1083LR-U+ | TSOT-23-6 | LVCMOS | 134 MHz | Clock | SOT-23-6 Thin, TSOT-23-6 | Surface Mount | 3.6 V | 3 V | 1 | 125 °C | -40 °C | LCD Panels | 1:1 | ||
Analog Devices Inc./Maxim Integrated DS1083LR+T | TSOT-23-6 | LVCMOS | 134 MHz | Clock | SOT-23-6 Thin, TSOT-23-6 | Surface Mount | 3.6 V | 3 V | 1 | 125 °C | -40 °C | LCD Panels | 1:1 |
Description
General part information
DS1083L Series
LCD Panels Spread Spectrum Clock Modulator IC 134MHz 1 Output TSOT-23-6
