Description
General part information

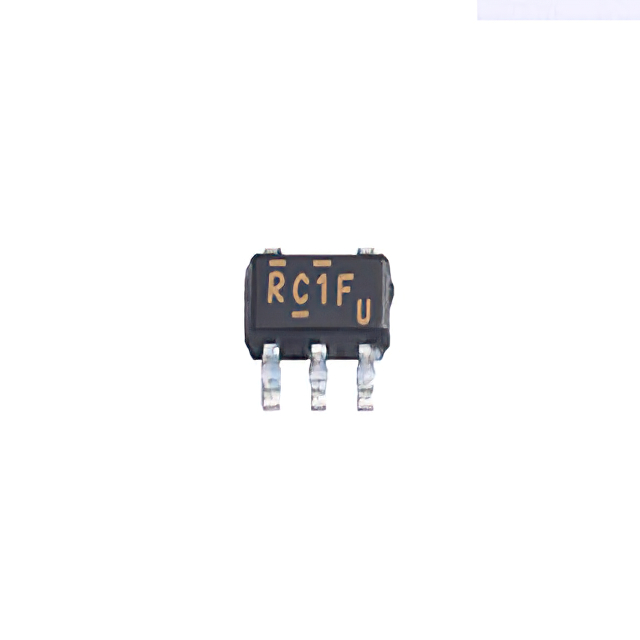

LMV321IDBVR
Voltage Feedback Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Technical Specifications
Parameters and characteristics for this part
| Specification | LMV321IDBVR |
|---|---|
| Amplifier Type | Voltage Feedback |
| Current - Input Bias | 10 pA |
| Current - Output / Channel | 25 mA |
| Current - Supply | 45 µA |
| Gain Bandwidth Product | 1 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Rail-to-Rail |
| Package Name | SOT-23-5 |
| Voltage - Input Offset | 800 µV |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2.1 V |
