1618584
LTBPhoenix Contact
CONN RCPT HSNG MALE 8POS PNL MNT
1618584
LTBPhoenix Contact
CONN RCPT HSNG MALE 8POS PNL MNT
Description
General part information
1618584

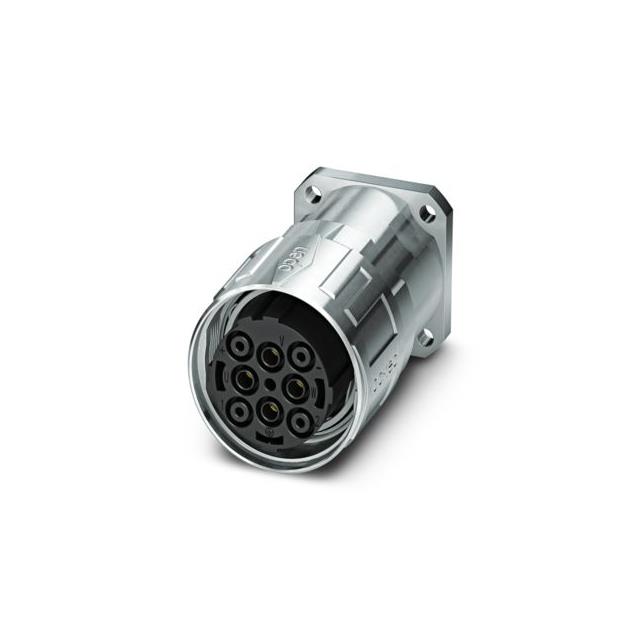

8 Position Circular Connector Receptacle Housing Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1618584 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Shell Material | Metal |
| Shell Size - Insert | M17-8 |
| Shielding | Shielded |
| Type | For Male Pins |
