Description
General part information

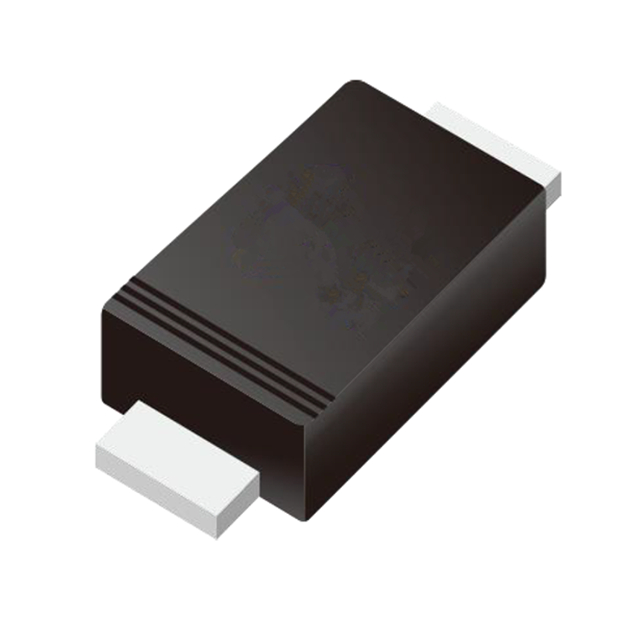

US2MF
Diode 1000 V 2A Surface Mount SMAF
Technical Specifications
Parameters and characteristics for this part
| Specification | US2MF |
|---|---|
| Capacitance | 20 pF |
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | DO-221AC, SMA Flat Leads |
| Package Name | SMAF |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1 kV |
