RG58LSZH-4.3/10M-NM(QTY:6m)
ActiveMcGill Microwave Systems
COAX CBL 4.3/10 TO N-TYPE 19.7'
RG58LSZH-4.3/10M-NM(QTY:6m)
ActiveMcGill Microwave Systems
COAX CBL 4.3/10 TO N-TYPE 19.7'
Description
General part information
RG58LSZH-4.3/10M-NM(QTY:6m)

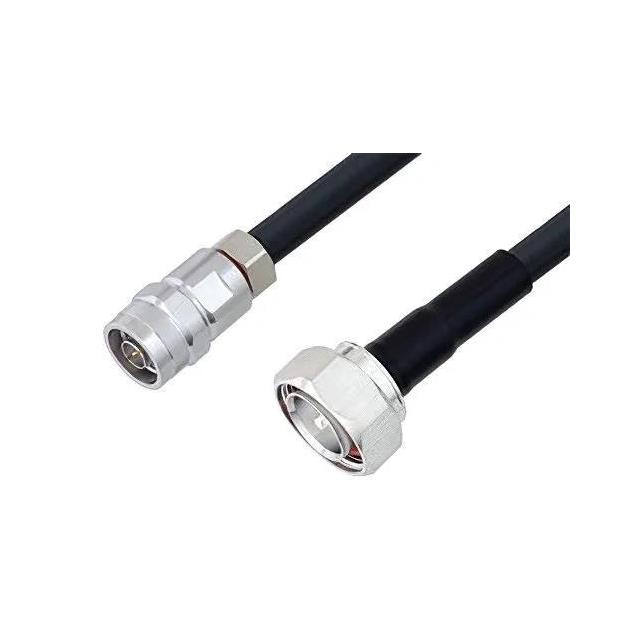

Cable Assembly Coaxial 4.3/10 to N-Type RG-58 236.2" (6.0m) 19.7'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG58LSZH-4.3/10M-NM(QTY:6m) |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Length | 236.2 in |
| Length (ft) | 19.7 ft |
| Style | 4.3/10 to N-Type |
