04611.25EER
ActiveLITTELFUSE
FUSE BRD MNT 600VAC 80VDC 2SMD
04611.25EER
ActiveLITTELFUSE
FUSE BRD MNT 600VAC 80VDC 2SMD
Description
General part information
04611.25EER

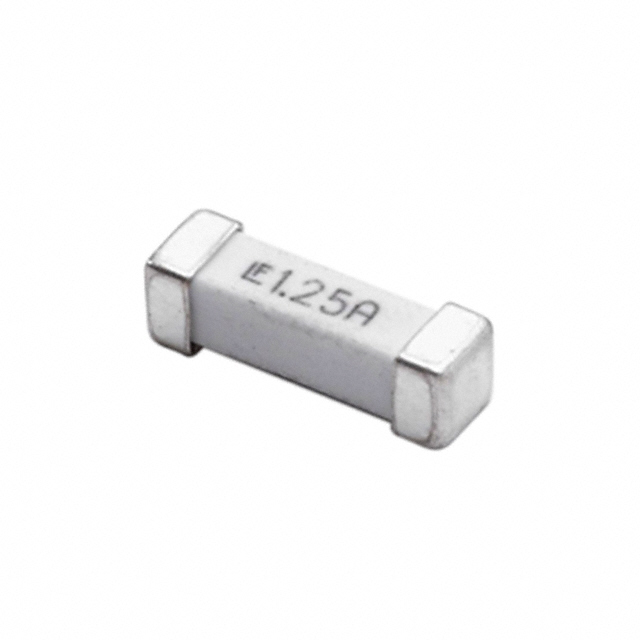

1.25 A 600 V AC 80 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Technical Specifications
Parameters and characteristics for this part
| Specification | 04611.25EER |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 60 A |
| Breaking Capacity (DC) | 100 A |
| Current Rating | 1.25 A |
| DC Cold Resistance | 0.11 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 16.5 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Slow Blow |
| Size / Dimension Height | 0.123 in |
| Size / Dimension Length | 0.398 in |
| Size / Dimension Width | 0.123 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 80 VDC |
