HA7-5221-5
ActiveRochester Electronics, LLC
IC OPAMP GP 1 CIRCUIT 8CERDIP
HA7-5221-5
ActiveRochester Electronics, LLC
IC OPAMP GP 1 CIRCUIT 8CERDIP
Description
General part information
HA7-5221-5

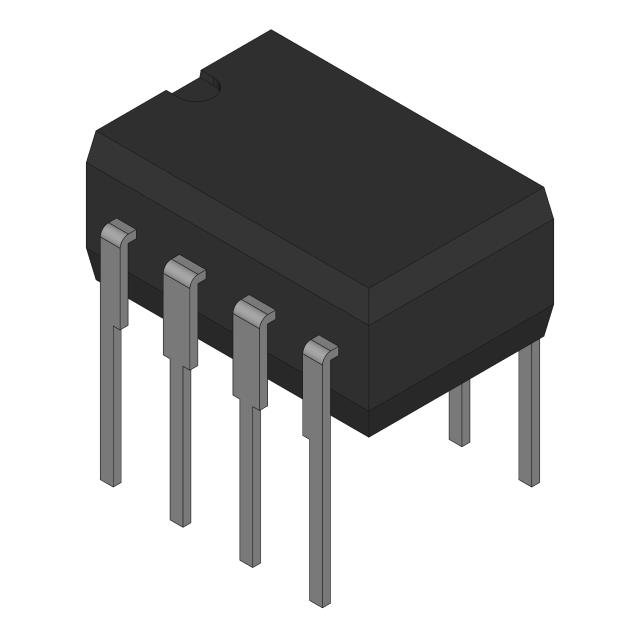

General Purpose Amplifier 1 Circuit 8-CERDIP
Technical Specifications
Parameters and characteristics for this part
| Specification | HA7-5221-5 |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 40 nA |
| Current - Output / Channel | 56 mA |
| Current - Supply | 8 mA |
| Gain Bandwidth Product | 35 MHz |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | 0 °C |
| Package Length | 0.3 in |
| Package Name | 8-CDIP, 8-CERDIP |
| Package Width | 7.62 mm |
| Slew Rate | 25 V/µs |
| Voltage - Input Offset | 300 µV |
| Voltage - Supply Span (Max) | 35 V |
| Voltage - Supply Span (Min) | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
