FMCA2758-50CM
ActiveFairview Microwave

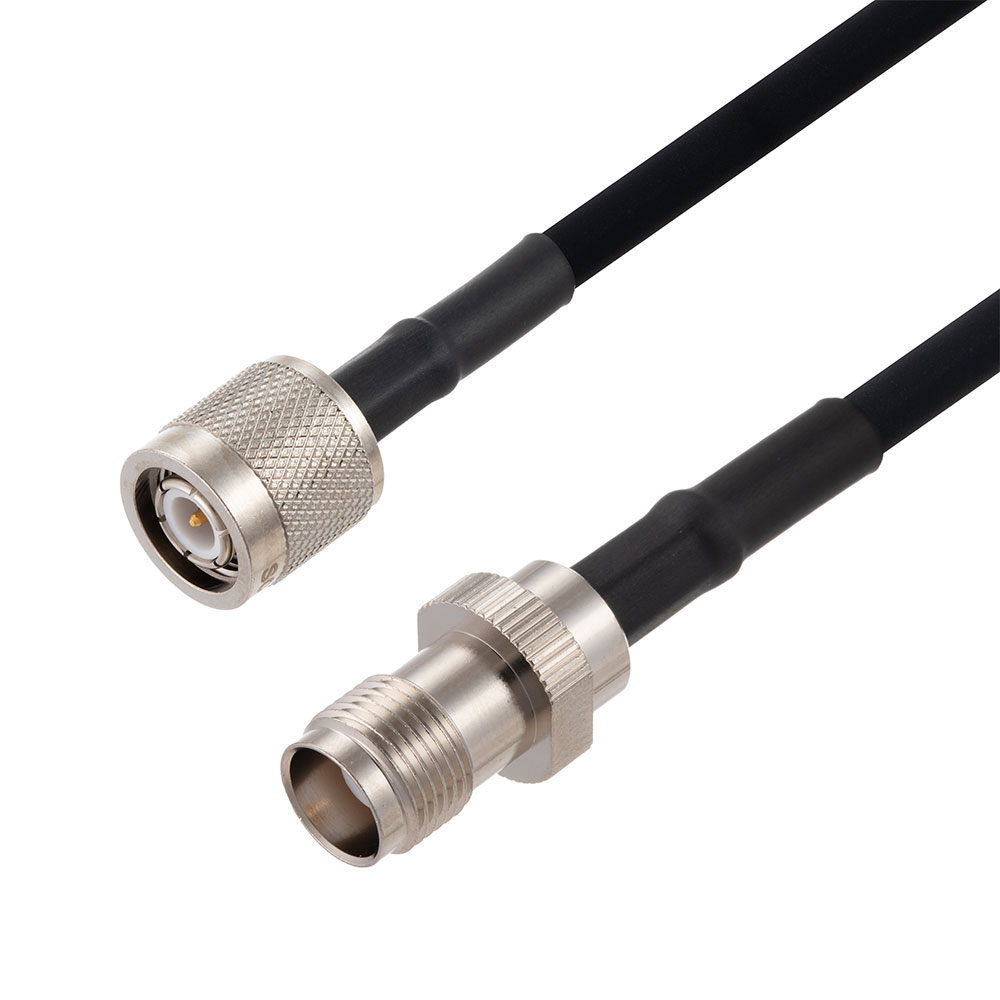

CBL ASSY TNCPLUG-TNCJACK 19.685
FMCA2758-50CM
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCJACK 19.685
Description
General part information
FMCA2758-50CM
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2758-50CM |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 19.69 in |
| Overall Impedance | 50 Ohms |
| Style | TNC |
