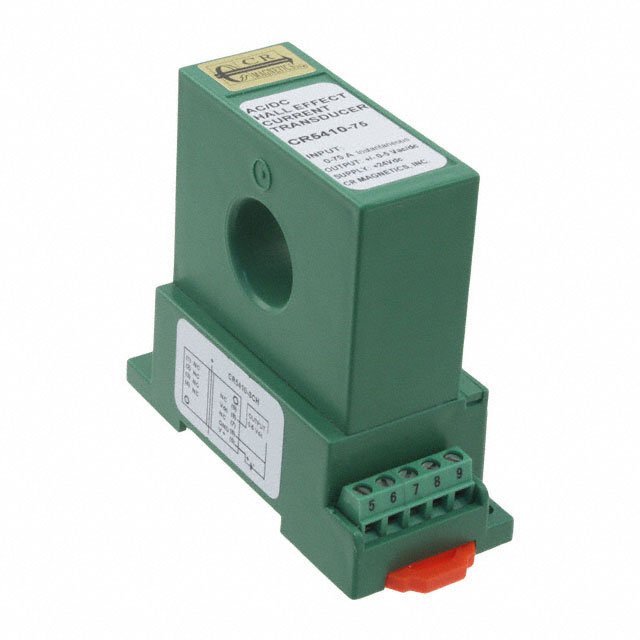

CR5410-75
ActiveCR Magnetics Inc.
SENSOR CURRENT HALL 75A AC/DC
CR5410-75
ActiveCR Magnetics Inc.
SENSOR CURRENT HALL 75A AC/DC
Description
General part information
CR5410-75
Current Sensor 75A 1 Channel Hall Effect, Open Loop Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CR5410-75 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 75 A |
| Current - Supply (Max) | 40 mA |
| For Measuring | AC, DC |
| Maximum Frequency | 4 kHz |
| Minimum Frequency | DC |
| Mounting Type | DIN Rail, Panel |
| Number of Channels | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply | 24 VDC |
