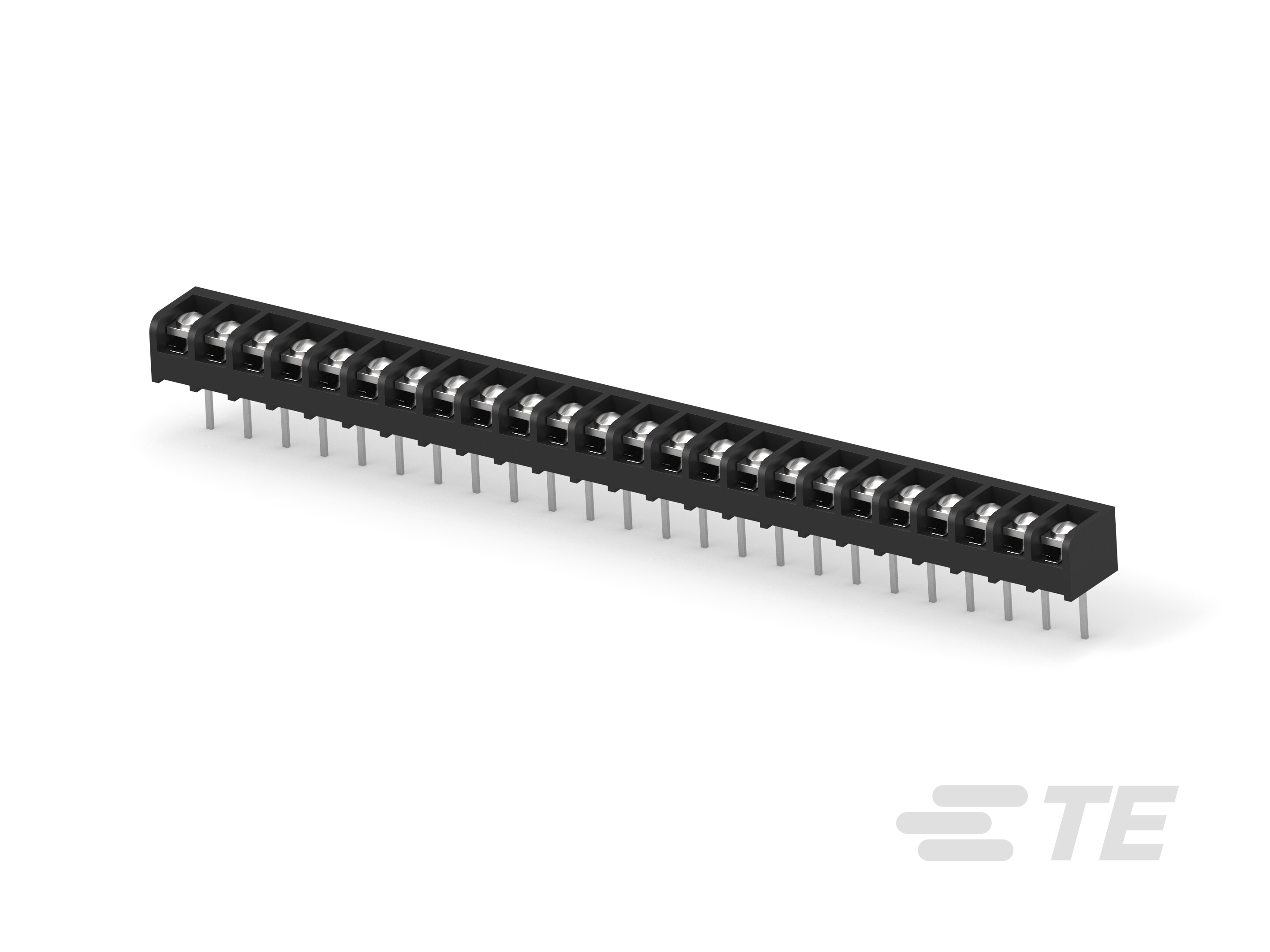

4WWV-24-008=#4 TRIBARR TERM BL-796598-6

4WWV-24-008

Active
TE Connectivity AMP Connectors

CONN BARRIER STRIP 24 POS 8.26MM WIRE WRAP ST THRU-HOLE 20A/CONTACT PACKAGE

Find alt
4WWV-24-008=#4 TRIBARR TERM BL-796598-6

4WWV-24-008

Active
TE Connectivity AMP Connectors

CONN BARRIER STRIP 24 POS 8.26MM WIRE WRAP ST THRU-HOLE 20A/CONTACT PACKAGE

Find alt

Description

General part information

BUCHANAN 4 Series Series

24 Position Barrier Strip, Tri-Barrier, Solderless Wire Wrap Bottom Termination, Wire-to-Board, 8.26 mm [.325 in] Centerline, 1 Row, BUCHANAN 4 Series

Technical Specifications

Parameters and characteristics for this part

Specification4WWV-24-008
Barrier Type3 Wall (Tri)
Bottom TerminationWire Wrap
ColorBlack
Current Rating20 A
Material - InsulationPolyamide, PA, Nylon
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Circuits24
Number of Rows1
Number of Wire Entries24
Operating Temperature105 °C
Pitch0.325 in
Terminal Block TypeBarrier Block
Terminal Screw FinishZinc
Terminal Screw MaterialSteel
Top TerminationScrews with Captive Plate
Voltage Rating150 VDC
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)14 AWG
