30-02772
ActiveTensility International Corp
CBL 10CON 30AWG GRY BIO
30-02772
ActiveTensility International Corp
CBL 10CON 30AWG GRY BIO
Description
General part information
30-02772

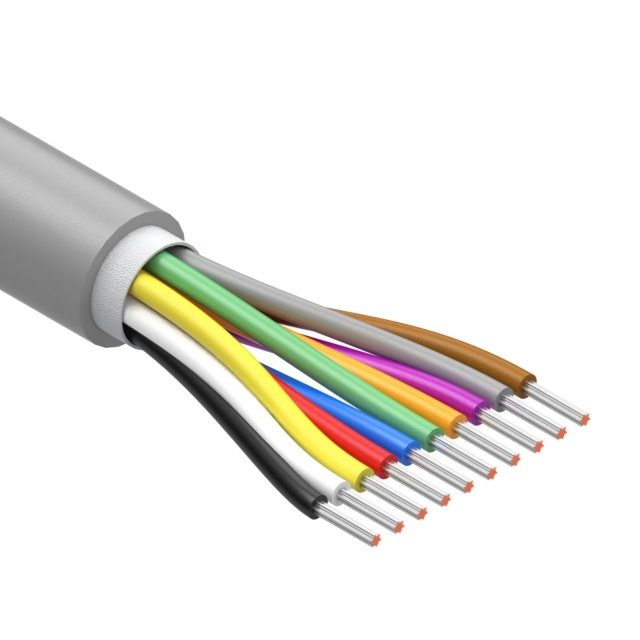

10 Conductor Multi-Conductor Cable Gray 30 AWG 502.0' (153.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02772 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 25 |
| Conductor Strand Diameter | 0.002 in |
| Features | Biological Compatibility |
| Jacket (Insulation) Diameter | 0.15 in |
| Jacket (Insulation) Material | Thermoplastic Polyurethane (TPU) |
| Jacket (Insulation) Thickness | 0.0197 in |
| Jacket Color | Gray |
| Length | 502 ft |
| Number of Conductors | 10 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | 10993, ISO |
| Voltage | 150 V |
| Wire Gauge | 30 AWG |
