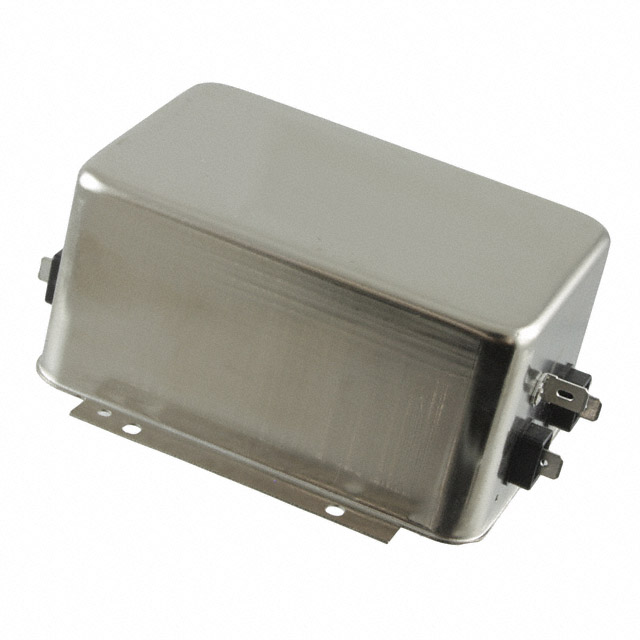

15ET1

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 15A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 15A CHASSIS

Technical Specifications

Parameters and characteristics for this part

LINE FILTER 250VAC 15A CHASSIS

Part	Applications	Voltage - Rated AC	Configuration	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Filter Type	Approval Agency	Inductance	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style
TE Connectivity Corcom Filters 15ET1	General Purpose	250 V	Two Stage	Chassis Mount	-10 °C	40 °C	Single Phase	CSA, UR, VDE	5.07 mH	15 A	60 Hz	50 Hz	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.19

General part information

Single Phase EMC/EMI Line Filter 15 A 250V 50/60Hz Two Stage Quick Connect

Technical documentation and resources
