CU4S0508AC-3600-00
ObsoleteTDK Corporation

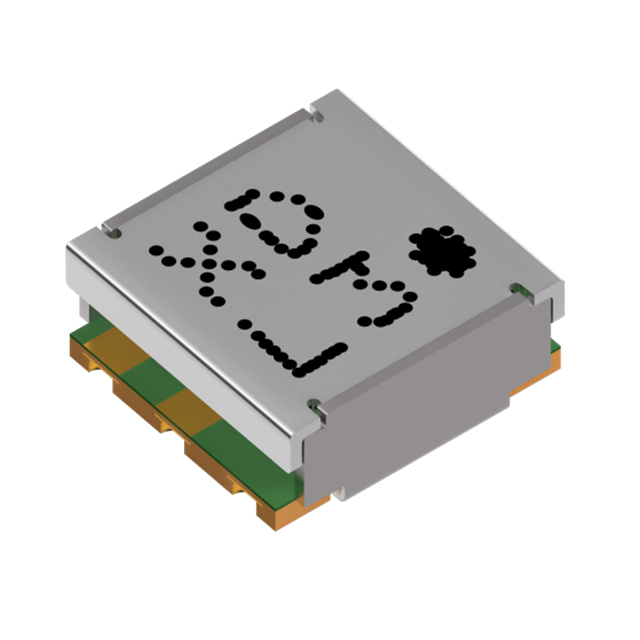

RF SURFACE MOUNT CIRCULATOR 3400MHZ TO 3800MHZ 6-PIN SMD T/R
CU4S0508AC-3600-00
ObsoleteTDK Corporation
RF SURFACE MOUNT CIRCULATOR 3400MHZ TO 3800MHZ 6-PIN SMD T/R
Description
General part information
CU4S0508AC-3600-00
RF SURFACE MOUNT CIRCULATOR 3400MHZ TO 3800MHZ 6-PIN SMD T/R
Technical Specifications
Parameters and characteristics for this part
| Specification | CU4S0508AC-3600-00 |
|---|---|
| Frequency (Max) | 3.8 GHz |
| Frequency (Min) | 3.4 GHz |
| Insertion Loss (Max) | 1.3 dB |
| Isolation (Min) | 9 dB |
| Package / Case | No Lead, 6-SMD |
| Package Name | 6-SMD |
| Power - Average Forward | 5 W |
| Type | Circulator |
| VSWR | 2 |
