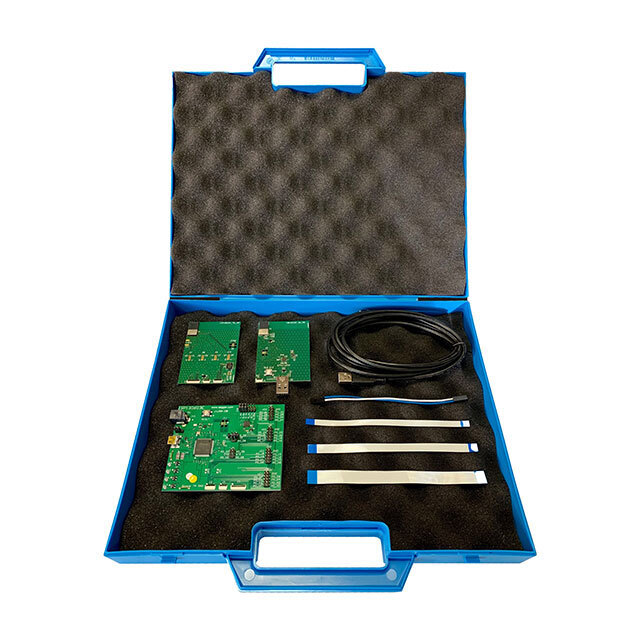

ISP4520-EU-DK

Active

Insight SIP

LORA + BLE DEV KIT EU

Search across all available documentation for this part.

Active

Insight SIP

LORA + BLE DEV KIT EU

Technical Specifications

Parameters and characteristics commom to parts in this series

LORA + BLE DEV KIT JP

Part	Supplied Contents	Sensitivity	Data Rate	Current - Transmitting [Min]	Current - Transmitting [Max]	Protocol	Serial Interfaces	Mounting Type	Antenna Type	RF Family/Standard	Current - Receiving [Max]	Current - Receiving [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power - Output	Memory Size [custom]	Memory Size [custom]	Package / Case	Utilized IC / Part	Frequency [Max]	Frequency	Frequency [Min]
Insight SIP ISP4520-AS-DK	Board(s), Cable(s)
Insight SIP ISP4520-EU-ST		-137 dBm	2 Mbps	5.4 mA	118 mA	Bluetooth v5.0, LoRaWAN	I2C, JTAG, SPI	Surface Mount	Integrated, Trace	Bluetooth	6.1 mA	4.6 mA	3.6 V	1.8 V	-30 ░C	85 °C	14 dBm	64 kB	512 kB	74-SMD Module	nRF52832
Insight SIP ISP4520-EU-DK	Board(s), Cable(s)
Insight SIP ISP4520-US-DK	Board(s), Cable(s)
Insight SIP ISP4520-US-ST		-137 dBm	2 Mbps	5.4 mA	118 mA	Bluetooth v5.0, LoRaWAN	I2C, JTAG, SPI	Surface Mount	Integrated, Trace	Bluetooth	6.1 mA	4.6 mA	3.6 V	1.8 V	-30 ░C	85 °C	22 dBm	64 kB	512 kB	74-SMD Module	nRF52832	928 MHz	2.48 GHz, 902 MHz	2.402 GHz
Insight SIP ISP4520-AS-ST		-137 dBm	2 Mbps	5.4 mA	118 mA	Bluetooth v5.0, LoRaWAN	I2C, JTAG, SPI	Surface Mount	Integrated, Trace	Bluetooth	6.1 mA	4.6 mA	3.6 V	1.8 V	-30 ░C	85 °C	14 dBm	64 kB	512 kB	74-SMD Module	nRF52832	923 MHz	2.48 GHz, 920 MHz	2.402 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 324.00

General part information

- Gateway Evaluation Board

Technical documentation and resources
