APAES1575R1040J34-T
ActiveAbracon LLC
RF ANT 1.575GHZ CER PATCH PIN
APAES1575R1040J34-T
ActiveAbracon LLC
RF ANT 1.575GHZ CER PATCH PIN
Description
General part information
APAES1575R1040J34-T

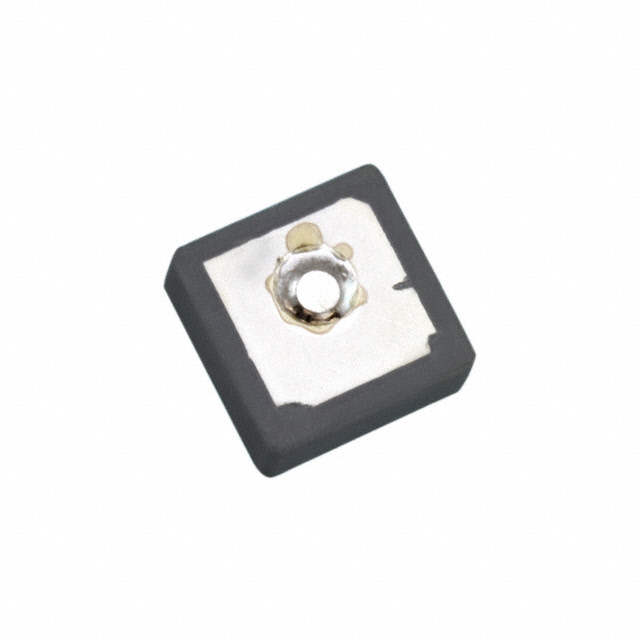

RF ANTENNA GPS Ceramic Patch Pin Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | APAES1575R1040J34-T |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.615 GHz |
| Frequency Range (Min) | 1.575 GHz |
| Gain | -2 dBic |
| Height (Max) | 0.185 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 1.5 |
