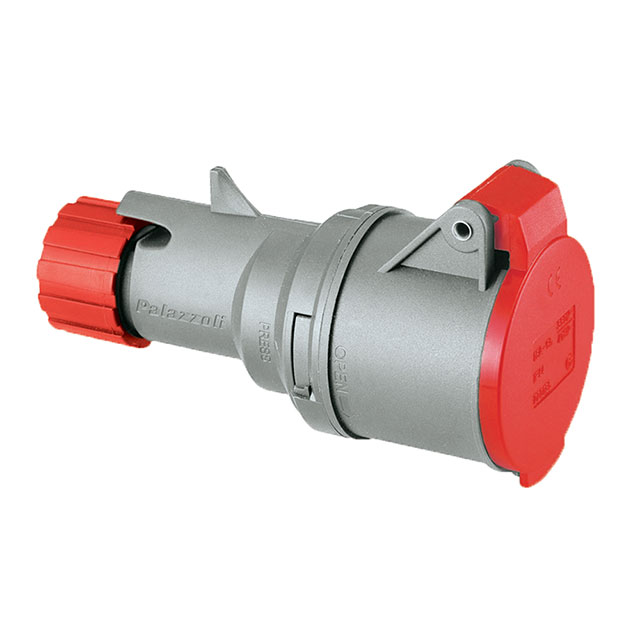

720137FX

Active

LAPP

CONN P+S 20A 480V 3+G F IP44

Search across all available documentation for this part.

Active

LAPP

CONN P+S 20A 480V 3+G F IP44

Technical Specifications

Parameters and characteristics for this part

Specification	720137FX

Approval Agency	cULus
Connector Type	Female Sockets, Plug
Current Rating (Amps)	20 A
Features	Cover, Strain Relief, Cable Clamp
Ingress Protection	IP44
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	480 VAC
Voltage Rating	3 Phase

CONN P+S 20A 480V 3+G F IP44

Part	Connector Type	Ingress Protection	Number of Positions	Approval Agency	Current Rating (Amps)	Material Flammability Rating	Features	Termination	Mounting Type	Voltage Rating	Voltage Rating
LAPP 720137FX	Female Sockets, Plug	IP44	4	cULus	20 A	UL94 V-0	Cable Clamp, Cover, Strain Relief	Screw	Free Hanging (In-Line)	480 VAC	3 Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Plug, Female Sockets Free Hanging (In-Line)
