18982-5SG-522

Active

Conxall/Switchcraft

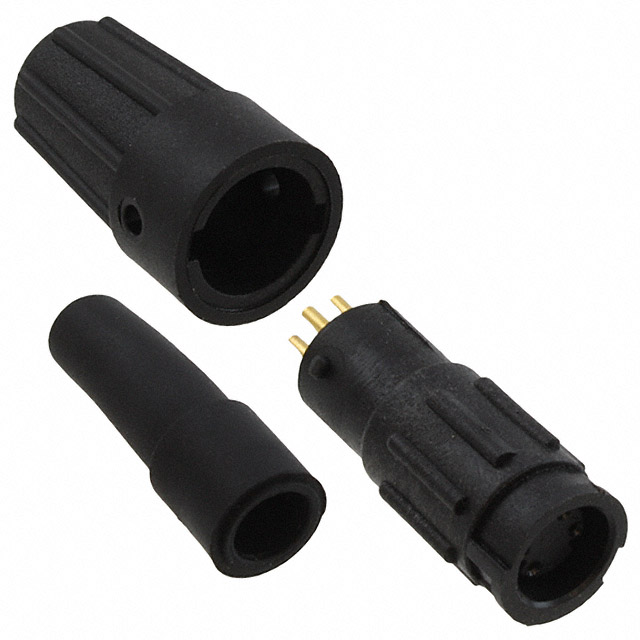

CONN RCPT FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	18982-5SG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT FMALE 5P GOLD SLDR CUP

Part	Primary Material	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Color	Ingress Protection	Backshell Material, Plating	Contact Finish - Mating	Mounting Type	Voltage Rating	Current Rating (Amps)	Applications	Shielding	Features	Connector Type	Orientation	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]
Conxall/Switchcraft 18982-5SG-522	Plastic	Bayonet Lock	5.84 mm	0.22 in	5.59 mm	0.23 in	Copper Alloy	Black	IP67 - Dust Tight, Waterproof	Thermoplastic	Gold	Free Hanging (In-Line)	600 VAC	4 A	Data, Industrial, Instrumentation, Medical	Unshielded	Backshell	Receptacle, Female Sockets	B	UL94 HB	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
