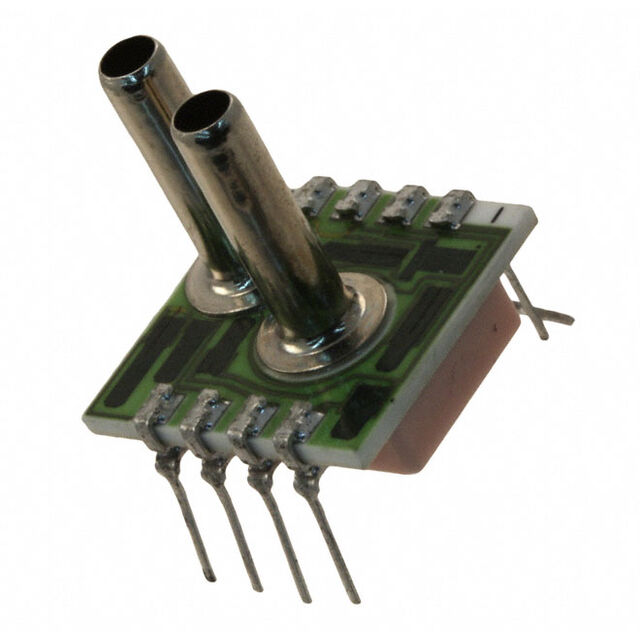

1230-030D-3L
ObsoleteTE Connectivity Measurement Specialties
SENSOR 30PSID 0.13" 0.1V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1230-030D-3L |
|---|---|
| Accuracy | 0.1 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 310.26 kPa |
| Maximum Pressure [Max] | 45 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 206.84 kPa |
| Operating Pressure | 30 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 8-DIP Module |
| Port Size | Dual, Male, Tube |
| Port Size | 3.23 mm |
| Port Size | 0.13 " |
| Port Style | Barbless |
| Pressure Type | Differential |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1230-030D-3L
Pressure Sensor 30PSI (206.84kPa) Differential Male - 0.13" (3.23mm) Tube, Dual 0 mV ~ 100 mV 8-DIP Module
