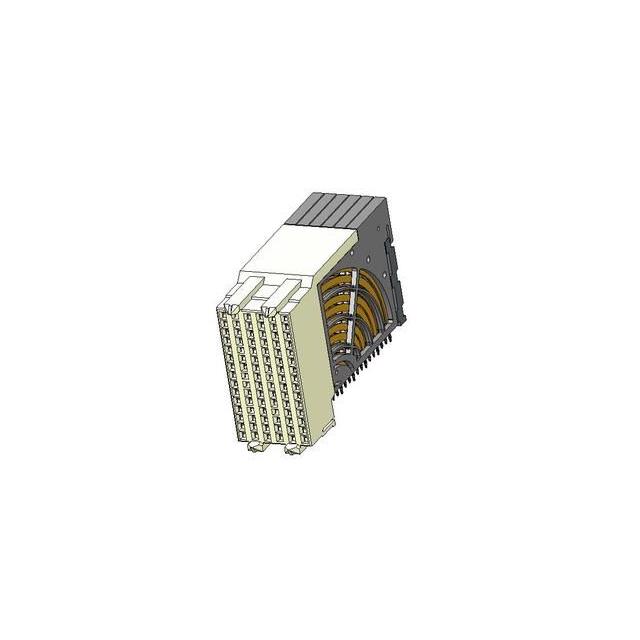

10135299-101LF

Active

Amphenol ICC (FCI)

VS2 5X6 RR SM G

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

VS2 5X6 RR SM G

Technical Specifications

Parameters and characteristics for this part

Specification	10135299-101LF

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	30 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Color	Connector Type	Current Rating (Amps)	Number of Rows	Number of Positions	Termination	Material Flammability Rating	Number of Columns	Mounting Type	Voltage Rating	Pitch [x]	Pitch [x]	Contact Finish
Amphenol ICC (FCI) 10135299-101LF	85 °C	-55 °C	All	Natural	Receptacle Female Sockets	500 mA	15	90	Press-Fit	UL94 V-0	6	Board Edge Right Angle Through Hole	30 VAC	0.079 in	2 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

90 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural
