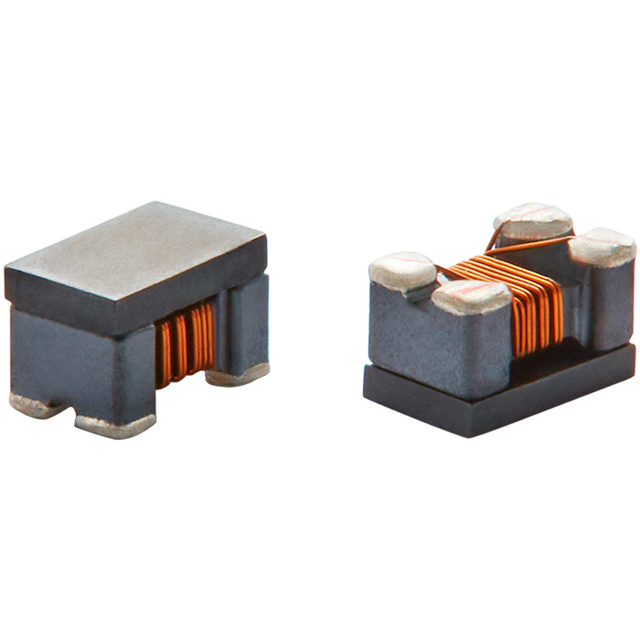

SPDL3216-161-2P-T
ActiveSignal Transformer
CMC 350MA 2LN 160OHM SMD AECQ200
SPDL3216-161-2P-T
ActiveSignal Transformer
CMC 350MA 2LN 160OHM SMD AECQ200
Description
General part information
SPDL3216-161-2P-T
2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 350mA DCR 400mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SPDL3216-161-2P-T |
|---|---|
| Current Rating (Max) | 350 mA |
| DC Resistance (DCR) (Max) | 400 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.087 in |
| Impedance | 160 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Voltage Rating - DC | 50 V |
