CL-750-L152-XT

Active

Intematix Corporation

CHROMALIT LT SOURCE LINEAR

Search across all available documentation for this part.

Active

Intematix Corporation

CHROMALIT LT SOURCE LINEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CL-750-L152-XT	CL-750 Series

CCT (K)	5000 K	5000 K
Conversion Efficacy (lm/Wrad)(typ)	232 lm/Wrad	220 - 232 lm/Wrad
CRI (Color Rendering Index)	70	70
Lens Size	-	9.5 - 215 mm
Lens Size [x]	152.5 mm	152.5 - 305 mm
Lens Size [y]	22.5 mm	12.5 - 215 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top, Square with Flat Top, Round with Domed Top
Viewing Angle	115 °	115 °

CHROMALIT LINEAR 70CRI 305X22.5

Part	Lens Size [x]	Lens Size [y]	Lens Style	CRI (Color Rendering Index)	Conversion Efficacy (lm/Wrad)(typ)	Viewing Angle	CCT (K)	Lens Size
Intematix Corporation CL-750-L225-PC	305 mm	22.5 mm	Rectangle with Flat Top	70	230 lm/Wrad	115 °	5000 K
Intematix Corporation CL-750-R152-XT				70	230 lm/Wrad	115 °	5000 K
Intematix Corporation CL-750-L152-XT	152.5 mm	22.5 mm	Rectangle with Flat Top	70	232 lm/Wrad	115 °	5000 K
Intematix Corporation CL-750-R215-PC				70	232 lm/Wrad	115 °	5000 K	215 mm
Intematix Corporation CL-750-R34-XT				70	232 lm/Wrad	115 °	5000 K	34 mm
Intematix Corporation CL-750-S95-PC			Square with Flat Top	70	232 lm/Wrad	115 °	5000 K	95 mm
Intematix Corporation CL-750-DOM100-PC			Round with Domed Top	70	220 lm/Wrad		5000 K	50 mm
Intematix Corporation CL-750-R62-XT				70	232 lm/Wrad	115 °	5000 K	61.5 mm
Intematix Corporation CL-750-R75-XT				70	232 lm/Wrad	115 °	5000 K	75 mm
Intematix Corporation CL-750-CAN15-PC			Round with Domed Top	70	220 lm/Wrad		5000 K	9.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.05

General part information

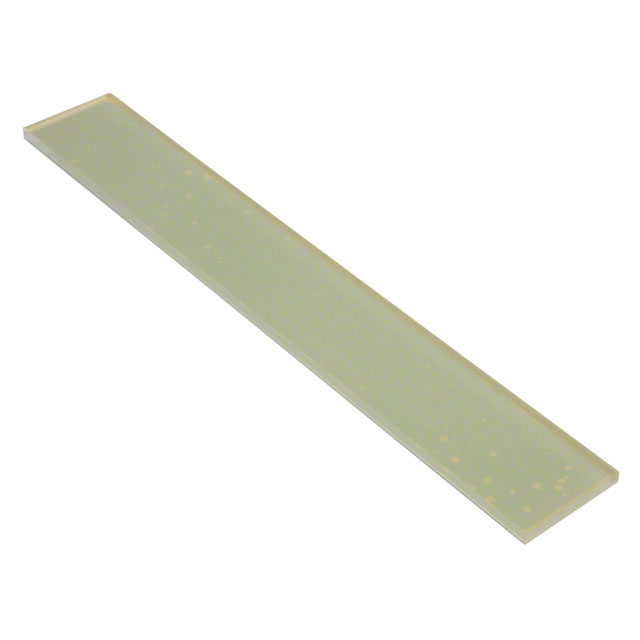

ChromaLit™ Linear Remote Phospher Light Source 70 CRI 5000.0 115° Rectangle with Flat Top 152.5mm x 22.5mm

Technical documentation and resources
