102619-5

Active

TE Connectivity AMP Connectors

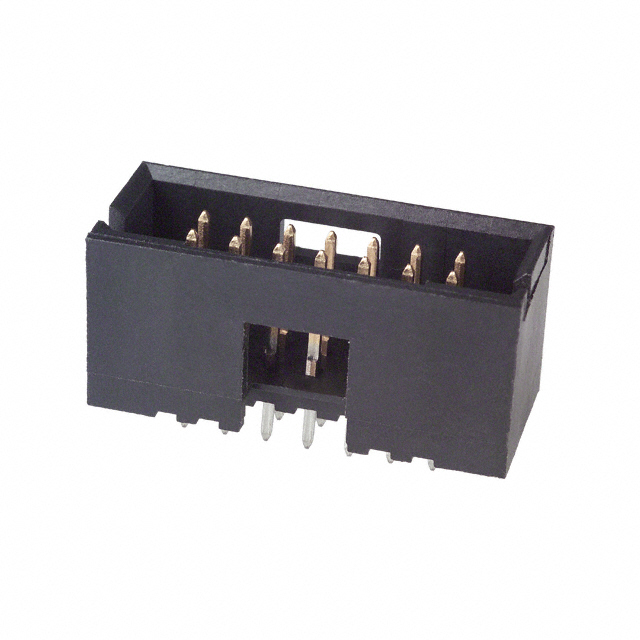

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102619-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102619-5	102619 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.44 in	0.44 in
Insulation Height	11.18 mm	11.18 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	14	6 - 60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

102619 Series

CONN HEADER VERT 14POS 2.54MM

Part	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Finish - Mating	Contact Shape	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Fastening Type	Style	Contact Finish - Post	Termination	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions	Connector Type	Number of Rows	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Material	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color
TE Connectivity AMP Connectors 102619-5	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin-Lead	Solder	3 A	0.1 in	2.54 mm	14	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 5-102619-3	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin	Solder	3 A	0.1 in	2.54 mm	10	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 1-102619-5	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin-Lead	Solder	3 A	0.1 in	2.54 mm	34	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 1-102619-0	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin-Lead	Solder	3 A	0.1 in	2.54 mm	24	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 6-102619-3	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin	Solder	3 A	0.1 in	2.54 mm	30	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 6-102619-1	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin	Solder	3 A	0.1 in	2.54 mm	26	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 5-102619-7	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin	Solder	3 A	0.1 in	2.54 mm	18	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 5-102619-8	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin	Solder	3 A	0.1 in	2.54 mm	20	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 5-102619-1	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin	Solder	3 A	0.1 in	2.54 mm	6	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 2-102619-8	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin-Lead	Solder	3 A	0.1 in	2.54 mm	60	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
TE Connectivity AMP Connectors 102619-3	All	3.18 mm	0.125 in	15 µin	0.38 µm	Shrouded - 4 Wall	Gold	Square	0.44 in	11.18 mm	13.55 mm	0.533 in	0.318 "	8.08 mm	UL94 V-0	Detent Lock	Board to Board, Cable	Tin-Lead	Solder	3 A	0.1 in	2.54 mm	10	Header	2	Thermoplastic	2.54 µm	100 µin	Through Hole	Phosphor Bronze	Male Pin	2.54 mm	0.1 in	-65 ░C	105 ░C	Black
