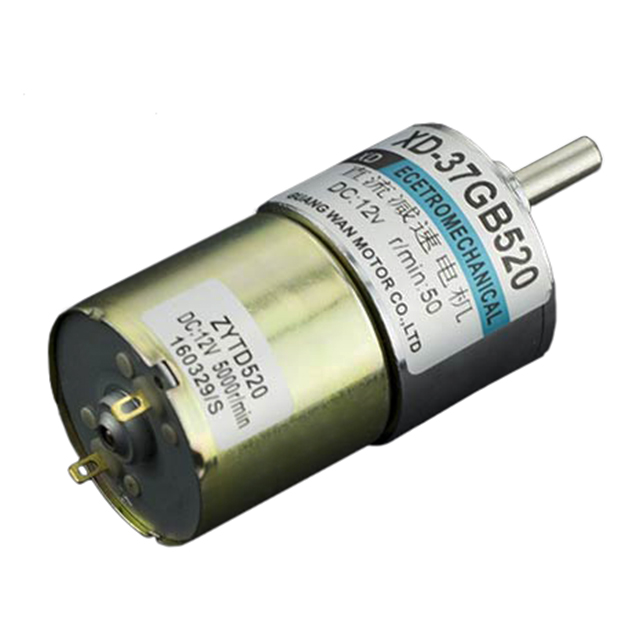

GEARMOTOR 50 RPM 12V METAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FIT0492-A
ActiveDFRobot
GEARMOTOR 50 RPM 12V METAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FIT0492-A | FIT0492 Series |
|---|---|---|
| Diameter - Shaft [diameter] | 6 mm | 6 mm |
| Diameter - Shaft [diameter] | 0.236 in | 0.236 in |
| Gear Reduction Ratio | 100 | 100 |
| Length - Shaft and Bearing [x] | 20 mm | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in | 0.787 in |
| Mounting Hole Spacing | 1.22 in | 1.22 in |
| Mounting Hole Spacing | 31 mm | 31 mm |
| Power - Rated | 5 W | 5 W |
| RPM | 50 RPM | 50 - 100 RPM |
| Size / Dimension | Round | Round |
| Size / Dimension [diameter] | 37 mm | 37 mm |
| Size / Dimension [diameter] | 1.457 Dia | 1.457 Dia |
| Termination Style | Solder Tab | Solder Tab |
| Torque - Rated (oz-in / mNm) | 125 oz-in | 97.21 - 125 oz-in |
| Torque - Rated (oz-in / mNm) | 883 mNm | 686.5 - 883 mNm |
| Type | DC Motor | DC Motor |
| Voltage - Rated | 12 VDC | 12 VDC |
| Weight | 210.01 g | 210.01 g |
| Weight | 0.463 lb | 0.463 lb |
FIT0492 Series
GEARMOTOR 100 RPM 12V METAL
| Part | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing | Mounting Hole Spacing | Voltage - Rated | Type | Weight | Weight | Termination Style | RPM | Power - Rated | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Gear Reduction Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DFRobot FIT0492-B | 6 mm | 0.236 in | 1.22 in | 31 mm | 12 VDC | DC Motor | 210.01 g | 0.463 lb | Solder Tab | 100 RPM | 5 W | Round | 37 mm | 1.457 Dia | 97.21 oz-in | 686.5 mNm | 20 mm | 0.787 in | 100 |
DFRobot FIT0492-A | 6 mm | 0.236 in | 1.22 in | 31 mm | 12 VDC | DC Motor | 210.01 g | 0.463 lb | Solder Tab | 50 RPM | 5 W | Round | 37 mm | 1.457 Dia | 125 oz-in | 883 mNm | 20 mm | 0.787 in | 100 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.90 | |
Description
General part information
FIT0492 Series
DC Motor Gearmotor 50 RPM 5W 12VDC
