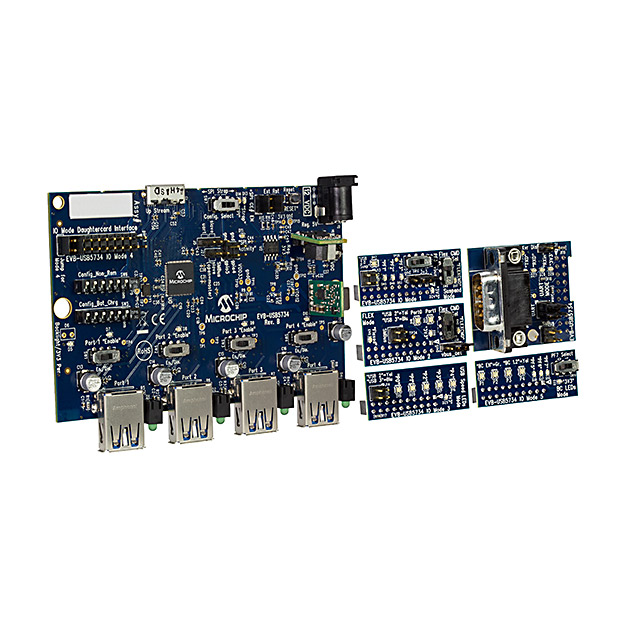

EVB-USB5734
ActiveMicrochip Technology
EVALUATION BOARD, 5 I/O DAUGHTER CARDS, USB 3.1 CONTROLLER HUB, SPI FLASH
Deep-Dive with AI
Search across all available documentation for this part.
EVB-USB5734
ActiveMicrochip Technology
EVALUATION BOARD, 5 I/O DAUGHTER CARDS, USB 3.1 CONTROLLER HUB, SPI FLASH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EVB-USB5734 | USB5734 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | USB 3.0 Hub | Hub Controller, USB 3.0 Hub |
| Interface | - | SPI, UART, I2C |
| Operating Temperature | - | 70 - 85 °C |
| Operating Temperature | - | -40 - 0 °C |
| Package / Case | - | 64-VFQFN Exposed Pad |
| Primary Attributes | 4-Channel (Quad) | 4-Channel (Quad) |
| Protocol | - | USB |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Standards | - | USB 3.0 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 64-VQFN (9x9) |
| Type | Interface | Interface |
| Utilized IC / Part | USB5734 | USB5734 |
| Voltage - Supply | - | 1.2 - 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
USB5734 Series
EVALUATION BOARD, 5 I/O DAUGHTER CARDS, USB 3.1 CONTROLLER HUB, SPI FLASH
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Protocol | Supplier Device Package | Interface | Package / Case | Function | Voltage - Supply | Standards | Supplied Contents | Type | Primary Attributes | Contents | Utilized IC / Part | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology EVB-USB5734 | |||||||||||||||
Microchip Technology USB5734-I/MR | |||||||||||||||
Microchip Technology USB5734T/MR | 70 °C | 0 °C | USB | 64-VQFN (9x9) | I2C, SPI, UART | 64-VFQFN Exposed Pad | Hub Controller | 1.2 V, 3.3 V | USB 3.0 | ||||||
Microchip Technology USB5734-I/MR | 85 °C | -40 °C | USB | 64-VQFN (9x9) | I2C, SPI, UART | 64-VFQFN Exposed Pad | Hub Controller | 1.2 V, 3.3 V | USB 3.0 | ||||||
Microchip Technology USB5734T-I/MR | 85 °C | -40 °C | USB | 64-VQFN (9x9) | I2C, SPI, UART | 64-VFQFN Exposed Pad | Hub Controller | 1.2 V, 3.3 V | USB 3.0 | ||||||
Microchip Technology USB5734/MR | |||||||||||||||
Microchip Technology EVB-USB5734 | USB 3.0 Hub | Board(s) | Interface | 4-Channel (Quad) | Board(s) | USB5734 | On-Board LEDs | ||||||||
Microchip Technology USB5734/MR | 70 °C | 0 °C | USB | 64-VQFN (9x9) | I2C, SPI, UART | 64-VFQFN Exposed Pad | Hub Controller | 1.2 V, 3.3 V | USB 3.0 | ||||||
Microchip Technology USB5734/MR |
Description
General part information
USB5734 Series
USB5734 USB 3.0 Hub Interface Evaluation Board
