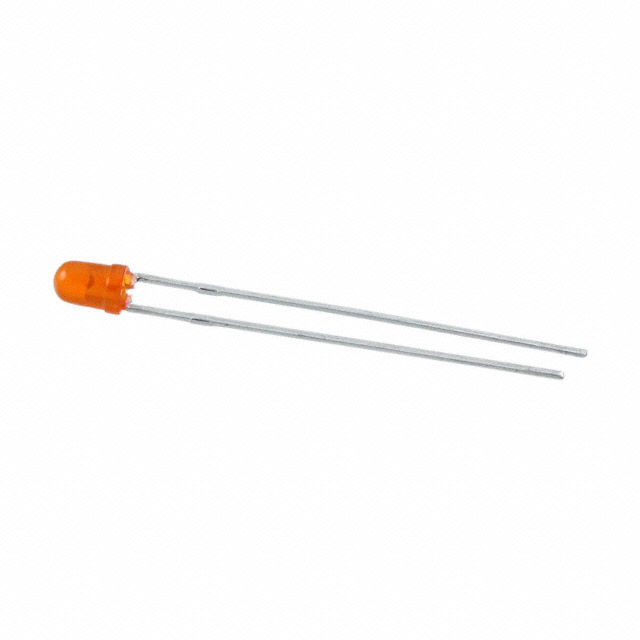

WP710A10SET
ActiveKingbright
T-1 SINGLE COLOR LED, SUPER BRIGHT ORANGE, 3MM, ROHS COMPLIANT PACKAGE-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP710A10SET |
|---|---|
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 5.9 mm |
| Lens Color | Orange |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 800 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 2.9 mm |
| Supplier Device Package | T-1 |
| Viewing Angle | 34 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 601 nm |
| Wavelength - Peak | 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WP710A10SET
Orange 601nm LED Indication - Discrete 2V Radial
