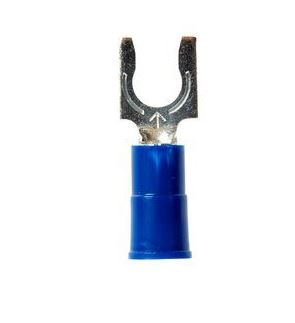

BFV14-10Q

Active

3M (TC)

FORK / SPADE TONGUE TERMINAL, BLOCK, HIGHLAND SERIES, 16 AWG, 14 AWG, M5, #10

Search across all available documentation for this part.

Active

3M (TC)

FORK / SPADE TONGUE TERMINAL, BLOCK, HIGHLAND SERIES, 16 AWG, 14 AWG, M5, #10

Technical Specifications

Parameters and characteristics for this part

Specification	BFV14-10Q

Color	Blue
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp

Part	Termination	Length - Overall [x]	Length - Overall [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Color	Terminal Type	Insulation	Contact Material	Mounting Type	Features	Stud/Tab Size	Contact Finish	Material - Insulation	Length - Termination [x]	Length - Termination [x]	Stud/Tab Size
3M (TC) BFV14-8Q	Crimp	21.59 mm	0.85 "	0.25 in	6.35 mm	Blue	Standard	Insulated	Copper ETP	Free Hanging (In-Line)	Butted Seam	8 Stud	Tin	Vinyl	0.45 in	11.43 mm
3M (TC) BFV14-8L	Crimp	21.59 mm	0.85 "	0.25 in	6.35 mm	Blue	Standard	Insulated	Copper ETP	Free Hanging (In-Line)	Butted Seam	8 Stud	Tin	Vinyl	0.45 in	11.43 mm
3M (TC) BFV14-10Q	Crimp	21.59 mm	0.85 "	0.25 in	6.35 mm	Blue	Standard	Insulated	Copper ETP	Free Hanging (In-Line)	Butted Seam		Tin	Vinyl	0.45 in	11.43 mm	10 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 10 Stud Spade Terminal Connector Crimp 14-16 AWG
