9934 060500

Active

Belden Inc.

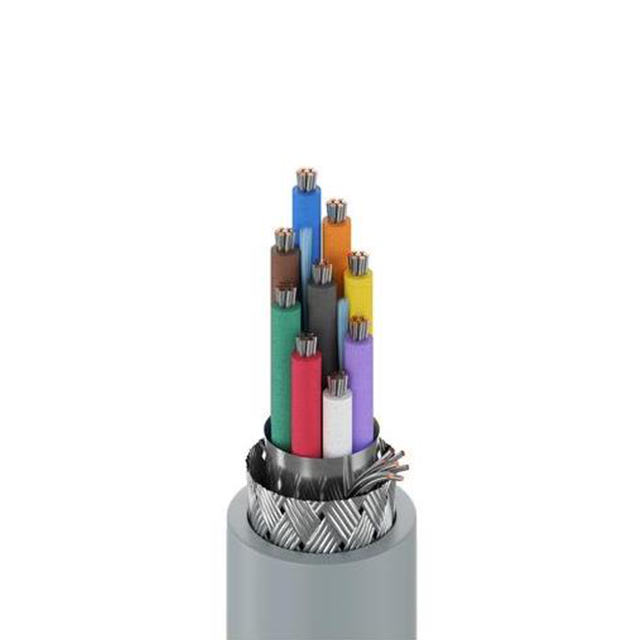

CABLE 9CON 24AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9CON 24AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9934 060500

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Cable Type	Shield Coverage	Wire Gauge	Conductor Material	Conductor Insulation	Length [x]	Length [x]	Features	Jacket (Insulation) Material	Usage	Shield Type
Belden Inc. 9934 060500	0.889 mm	0.035 in	32 AWG	7	Aluminum Copper Tinned	Chrome	-30 ░C	80 C	UL Style 2919	7.62 mm	0.3 in	9	Multi-Conductor	65 % 100 %	24 AWG	Copper Tinned	Foam Polyethylene (FPE)	500 '	152.4 m	Drain Wire	Poly-Vinyl Chloride (PVC)	Computer	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.52

General part information

9 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
