NRPN182PARN-RC

Active

Sullins Connector Solutions

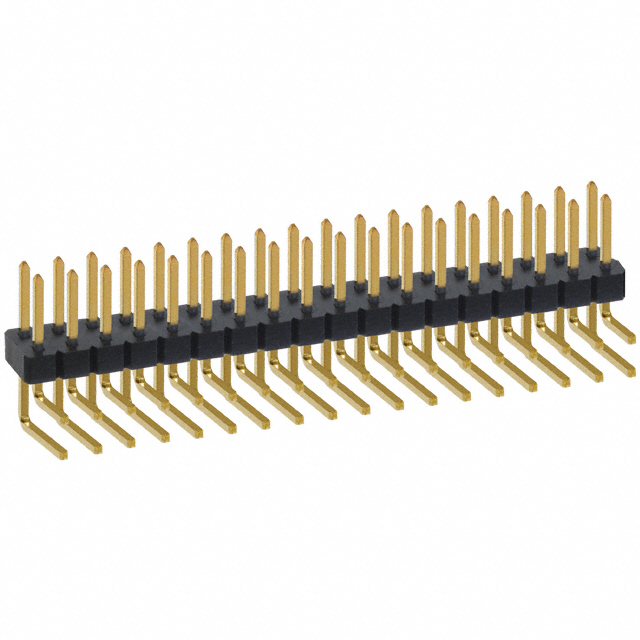

CONN HEADER R/A 36POS 2MM

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HEADER R/A 36POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	NRPN182PARN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	150 VDC

Part	Insulation Material	Termination	Number of Rows	Style	Material Flammability Rating	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Number of Positions	Contact Material	Voltage Rating	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]	Contact Length - Post	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Length - Mating	Contact Length - Mating	Mounting Type	Connector Type	Contact Shape	Contact Type	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Fastening Type	Insulation Height [custom]	Insulation Height [custom]
Sullins Connector Solutions NRPN182PAEN-RC	Nylon 6T Polyamide (PA6T)	Solder	2	Board to Board Cable	UL94 V-0	Gold	0.079 in	2 mm	Unshrouded	36	Brass	150 VDC	Gold	0.079 in	2 mm	0.11 in	2.79 mm	8.38 mm	0.33 in	2 A	Flash	0.079 in	2 mm	Black	0.141 in	3.6 mm	Through Hole	Header	Square	Male Pin	Flash	-40 °C	105 ░C	All	Push-Pull
Sullins Connector Solutions NRPN182PARN-RC	Nylon 6T Polyamide (PA6T)	Solder	2	Board to Board Cable	UL94 V-0	Gold	0.079 in	2 mm	Unshrouded	36	Brass	150 VDC	Gold	0.079 in	2 mm	0.11 in	2.79 mm			2 A	Flash			Black	0.141 in	3.6 mm	Through Hole Right Angle	Header	Square	Male Pin	Flash	-40 °C	105 ░C	All	Push-Pull	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 36 position 0.079" (2.00mm)
