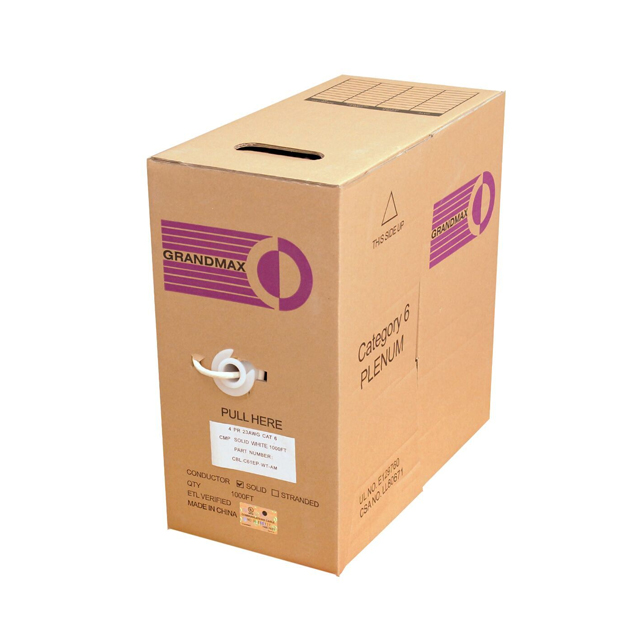

Specification	CBL-C61EP-WT-AM

Cable Type	Cat6, Multi-Pair, Cat6e
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter	0.236 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	White
Length	1000 ft
Number of Conductors	8
Number of Conductors - Pair	4
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Ratings	Style, UL, CMP
Wire Gauge	23 AWG

CBL-C61 Series

Part	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Material	Jacket (Insulation) Diameter	Length	Number of Conductors - Pair	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Conductor Strand	Jacket Color	Conductor Insulation	Ratings	Shield Material	Shield Coverage	Features	Shield Type
Y.C. Cable (East) CBL-C61PR-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.228 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	24 AWG	Solid	Violet	High Density Polyethylene (HDPE)	CMR Style UL
Y.C. Cable (East) CBL-C61EP-RD-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.236 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	23 AWG	Solid	Red	Fluorinated Ethylene-Propylene (FEP)	CMP Style UL
Y.C. Cable (East) CBL-C61ES-YL-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.248 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	24 AWG	Solid	Yellow	High Density Polyethylene (HDPE)	CMR Style UL	Aluminum	100 %	Drain Wire	Foil
Y.C. Cable (East) CBL-C61ES-RD-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.248 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	24 AWG	Solid	Red	High Density Polyethylene (HDPE)	CMR Style UL	Aluminum	100 %	Drain Wire	Foil
Y.C. Cable (East) CBL-C61ES-BK-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.248 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	24 AWG	Solid	Black	High Density Polyethylene (HDPE)	CMR Style UL	Aluminum	100 %	Drain Wire	Foil
Y.C. Cable (East) CBL-C61EP-GY-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.236 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	23 AWG	Solid	Gray	Fluorinated Ethylene-Propylene (FEP)	CMP Style UL
Y.C. Cable (East) CBL-C61ES-PR-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.248 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	24 AWG	Solid	Violet	High Density Polyethylene (HDPE)	CMR Style UL	Aluminum	100 %	Drain Wire	Foil
Y.C. Cable (East) CBL-C61WT-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.228 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	24 AWG	Solid	White	High Density Polyethylene (HDPE)	CMR Style UL
Y.C. Cable (East) CBL-C61ES-WT-AM	Cat6 Multi-Pair	-20 °C	75 °C	Bare Copper	0.248 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	24 AWG	Solid	White	High Density Polyethylene (HDPE)	CMR Style UL	Aluminum	100 %	Drain Wire	Foil
Y.C. Cable (East) CBL-C61EP-BL-AM	Cat6 Cat6e Multi-Pair	-20 °C	75 °C	Bare Copper	0.236 in	1000 ft	4	8	Poly-Vinyl Chloride (PVC)	23 AWG	Solid	Blue	Fluorinated Ethylene-Propylene (FEP)	CMP Style UL
