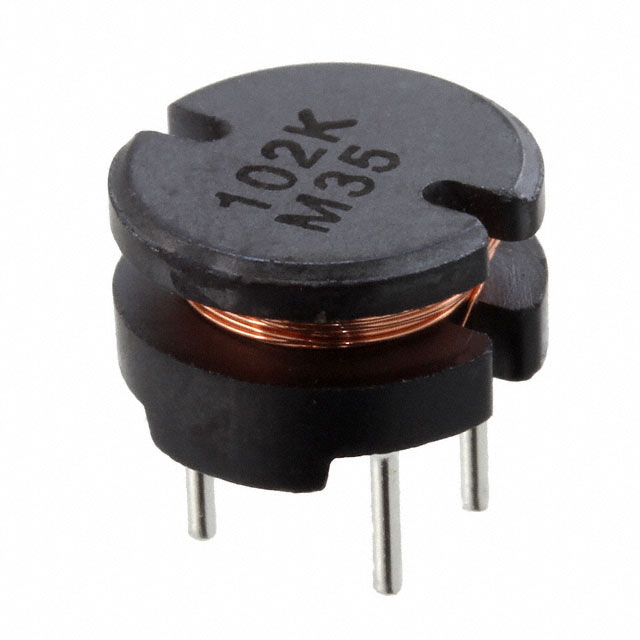

RCH106NP-102K
ActiveSumida America Components Inc.
FIXED IND 1MH 360MA 3.2 OHM TH
RCH106NP-102K
ActiveSumida America Components Inc.
FIXED IND 1MH 360MA 3.2 OHM TH
Description
General part information
RCH106NP-102K
1 mH Unshielded Drum Core, Wirewound Inductor 360 mA 3.2Ohm Max Radial, Vertical Cylinder, 4 Leads (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | RCH106NP-102K |
|---|---|
| Current Rating | 360 mA |
| DC Resistance (DCR) (Max) | 3.2 Ohm |
| Height - Seated (Max) | 0.256 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
