HVAM75FBC1G00
ObsoleteStackpole Electronics Inc

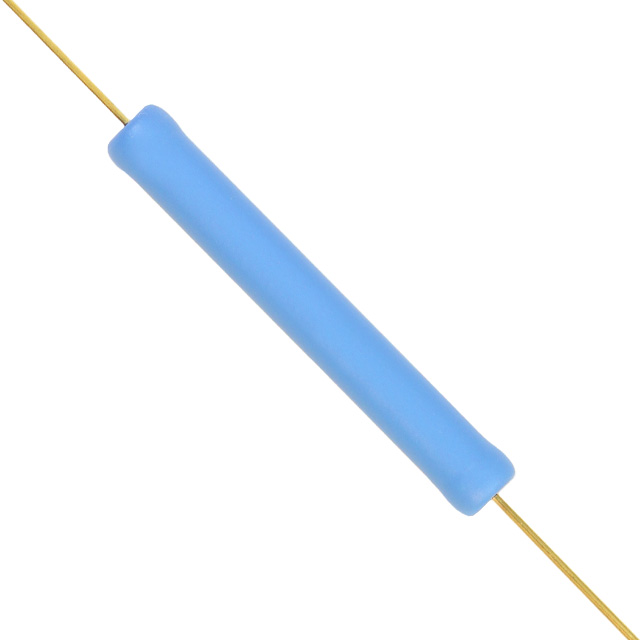

RES 1 GOHM 1% 7.5W AXIAL
HVAM75FBC1G00
ObsoleteStackpole Electronics Inc
RES 1 GOHM 1% 7.5W AXIAL
Description
General part information
HVAM75FBC1G00
1 GOhms ±1% 7.5W Through Hole Resistor Axial High Voltage Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVAM75FBC1G00 |
|---|---|
| Composition | Metal Film |
| Features | High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 225 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 7.5 W |
| Resistance | 1 GOhm |
| Size / Dimension Diameter | 0.31 in |
| Size / Dimension Length | 3.125 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
