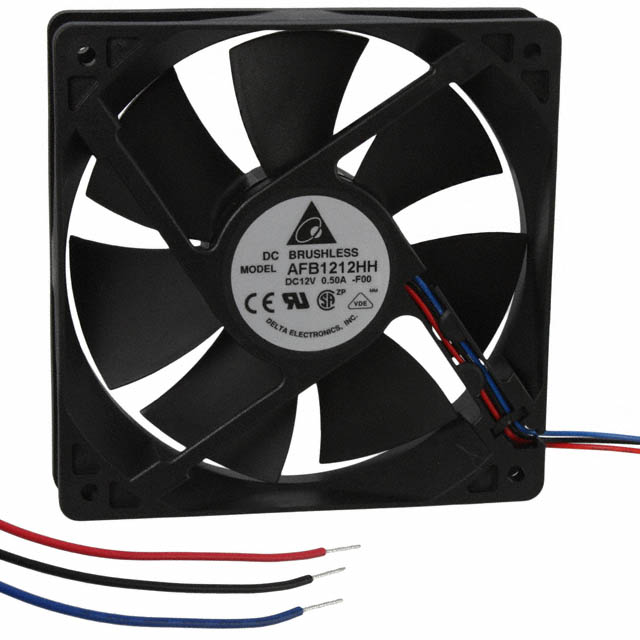

AFB1212HH-F00
ActiveDelta Electronics
FAN AXIAL 120X25.4MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB1212HH-F00
ActiveDelta Electronics
FAN AXIAL 120X25.4MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB1212HH-F00 |
|---|---|
| Air Flow | 95.1 CFM |
| Air Flow | 2.66 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.33 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 41.5 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3.96 W |
| RPM | 2800 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 75.7 Pa |
| Static Pressure | 0.304 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 198 g |
| Weight | 0.437 lb |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.95 | |
| 10 | $ 17.18 | |||
| 25 | $ 15.87 | |||
| 50 | $ 14.95 | |||
| 100 | $ 14.07 | |||
| 250 | $ 13.00 | |||
| 500 | $ 12.23 | |||
Description
General part information
AFB1212HH-F00
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 95.1 CFM (2.66m³/min) 3 Wire Leads
