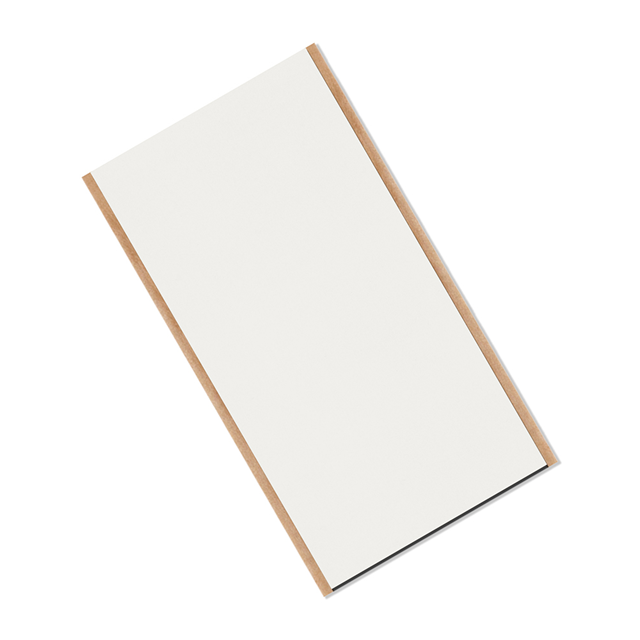

VF16B 4" X 8"-25

Active

TapeCase

TAPE DBL COATED FOAM BLK 4"X8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VF16B 4" X 8"-25

Active

TapeCase

TAPE DBL COATED FOAM BLK 4"X8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VF16B 4" X 8"-25	VF16B Series

Adhesive	High Tack Acrylic	High Tack Acrylic
Backing, Carrier [custom]	PVC	PVC
Backing, Carrier [custom]	Paper	Paper
Color	Black	Black
Length	203.2 mm	19.05 - 254 mm
Length	8 in	0.75 - 10 in
Length	-	0.75 "
Length	-	1 - 5 in
Length	-	25.4 - 127 mm
Tape Type	Double Coated Foam	Double Coated Foam
Temperature Range	66 °C	66 °C
Temperature Range	150 °F	150 °F
Thickness	0.0625 in	0.0625 in
Thickness	62.5 mils	62.5 mils
Thickness	0.0625 "	0.0625 "
Thickness	1.588 mm	1.588 mm
Usage	Bonding	Bonding
Width	-	0.56 - 254 mm
Width	-	0.5 - 2 in
Width	-	0.5 - 8 in
Width	-	50.8 - 127 mm
Width	-	2 - 5 in
Width	-	0.5 - 88.9 in
Width	-	25.4 - 50.8 mm
Width	-	1 1/2
Width	-	0.94 in
Width [x]	4 "	1 - 10 "
Width [x]	101.6 mm	25.4 - 228.6 mm

VF16B Series

TAPE DOUBLE COATED FOAM BLACK

...

Part	Usage	Backing, Carrier [custom]	Backing, Carrier [custom]	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Thickness	Tape Type	Color	Adhesive	Length	Length	Width [x]	Width [x]	Width	Width [diameter]	Width	Length [x]	Width [y]	Width [y]	Width
TapeCase 1.375-5-VF16B	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic
TapeCase VF16B 4" X 1.25"-25	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic	1.25 in	31.75 mm	4 "	101.6 mm
TapeCase VF16B CIRCLE-0.5"-250	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic					12.7 mm	0.5 in	0.5 in
TapeCase VF16B 4" X 9"-25	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic	9 "	228.6 mm	4 "	101.6 mm
TapeCase VF16B 1" X 3"-5	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic		76.2 mm	1 in	25.4 mm				3 in
TapeCase 0.75-5-VF16B	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic
TapeCase VF16B 1" X 2"-100	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic			1 in	25.4 mm
TapeCase VF16B 5" X 6"-25	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic	6 in	152.4 mm							127 mm	5 in
TapeCase VF16B 0.5" X 1.25"-25	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic	1.25 in	31.75 mm			12.7 mm		0.5 in				0.5 in
TapeCase 2.5-5-VF16B	Bonding	PVC	Paper	66 °C	150 °F	0.0625 in	62.5 mils	0.0625 "	1.588 mm	Double Coated Foam	Black	High Tack Acrylic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5	$ 56.02

Description

General part information

VF16B Series

Double Coated Foam Tape High Tack Acrylic Adhesive Black 4.00" (101.60mm) X 8.00" (203.20mm)
