Description
General part information

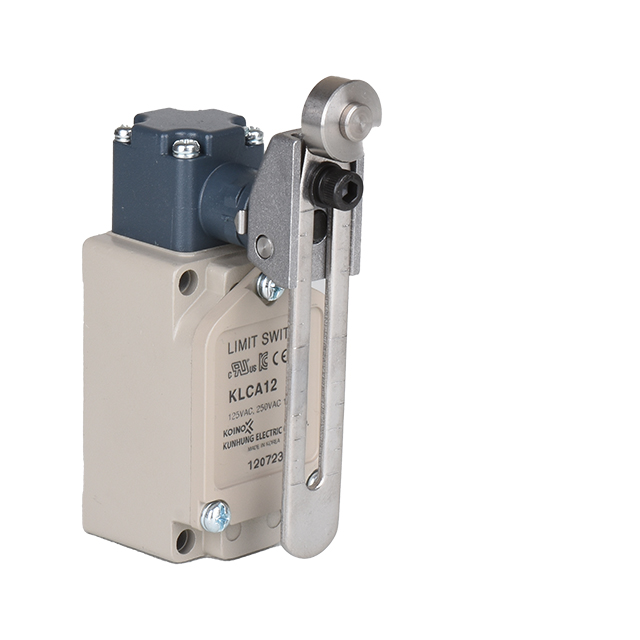

KLCA12
Switch DPST-NO/NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KLCA12 |
|---|---|
| Actuator Type | Adjustable Roller, Side Rotary |
| Circuit | DPST-NO/NC |
| Current Rating | 10 A, 800 mA |
| Electrical Life (Cycles) | 100000 Cycles |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 290 gf |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -10 °C |
| Overtravel (Angle) | 30 ° |
| Pretravel (Angle) | 20 ° |
| Release Force | 25 gf |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
