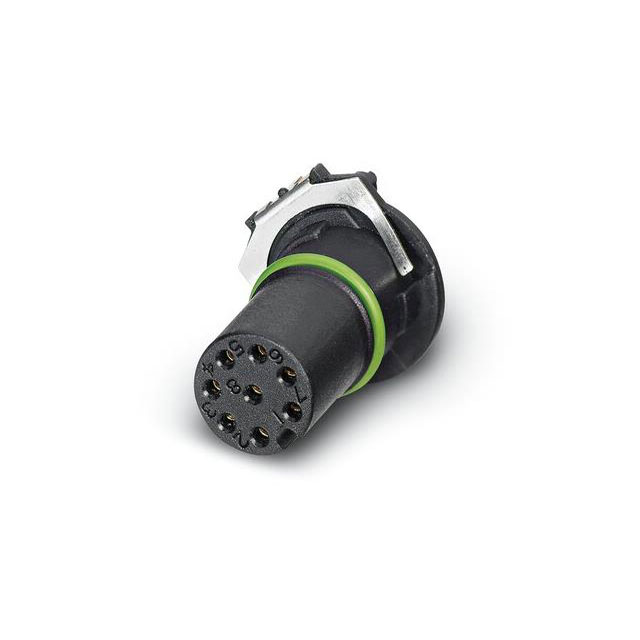

Specification	1457681

Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	2 A
Features	Requires Shell, Board Guide, Insert Only
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyphthalamide, PPA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	30 V
